MAX17596ATE+T - Analog Devices

Description: Peak-Current-Mode Controllers for Flyback and Boost Regulators

Download MAX17596ATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

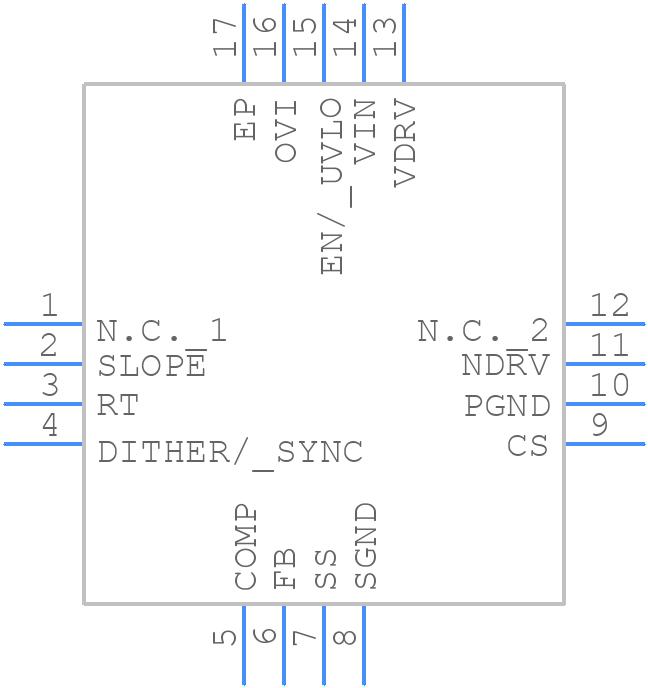

MAX17596ATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17596ATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4C_2020
click to zoom
3D Models
MAX17596ATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4C_2020
click to zoom

MAX17596ATE+T Details

  • Manufacturer Part Number:

    MAX17596ATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-02-10

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17596ATE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17596ATE+T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a separate power plane for the output voltage and to keep the output voltage traces away from the input voltage traces.
  • The input capacitors should be chosen based on the input voltage ripple requirement, output current, and operating frequency. A general rule of thumb is to use capacitors with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the input voltage. X5R or X7R ceramic capacitors are recommended due to their low ESR and high ripple current capability.
  • The maximum output current of the MAX17596ATE+T is 3A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations. It's recommended to check the device's thermal performance and power dissipation to ensure reliable operation.
  • The MAX17596ATE+T has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to the input voltage. The device will limit the output current to a maximum of 3.5A when the OC pin is connected. Additionally, an external current sense resistor can be used to monitor the output current and implement custom overcurrent protection schemes.
  • The recommended input voltage range for the MAX17596ATE+T is 4.5V to 60V. However, the device can operate with input voltages as low as 3.5V and as high as 65V, but with reduced performance and efficiency.
