MAX17599ATE+T - Analog Devices

Description: Switching Controllers Active-Clamp Current-Mode PWM Controllers

Download MAX17599ATE+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

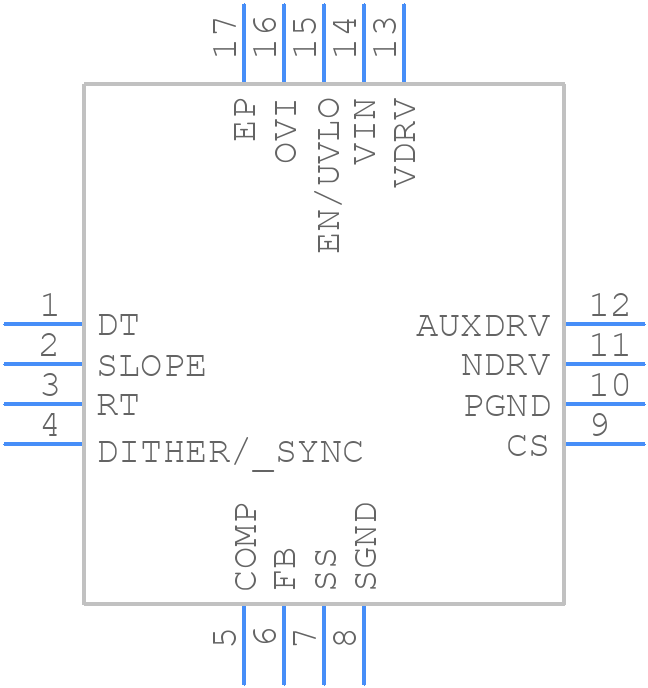

Symbol
MAX17599ATE+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17599ATE+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+4
click to zoom
3D Models
MAX17599ATE+T - Analog Devices - 3D model - Quad Flat No-Lead - T1633+4
click to zoom

MAX17599ATE+T Details

  • Manufacturer Part Number:

    MAX17599ATE+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2012-02-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17599ATE+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17599ATE+T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a separate power plane for the output voltage and to keep the output voltage traces away from the input voltage traces.
  • The input capacitors should be selected based on the input voltage range, ripple current, and ESR requirements. A minimum capacitance of 10uF is recommended, and the capacitor should be rated for the maximum input voltage. X5R or X7R ceramic capacitors are good options due to their low ESR and high ripple current capability.
  • The maximum output current capability of the MAX17599ATE+T is 3A. However, the actual output current capability may be limited by the thermal performance of the device and the PCB layout. It's recommended to derate the output current based on the ambient temperature and the thermal resistance of the device.
  • The output voltage of the MAX17599ATE+T can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formula provided in the datasheet, and the output voltage can be adjusted from 0.8V to 3.3V.
  • The EN pin is an active-high enable input that allows the user to turn the device on or off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and the output voltage is turned off.
