MAX17624ATA+T - Analog Devices

Description: Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 1A 8-WFDFN Exposed Pad

Download MAX17624ATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

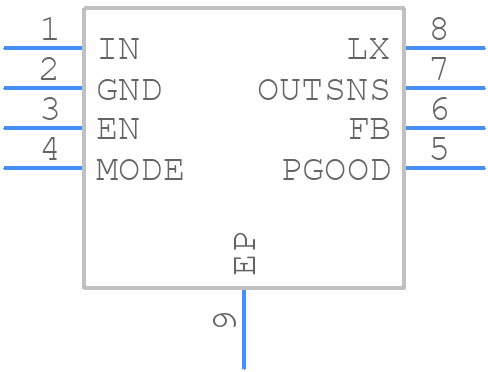

MAX17624ATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17624ATA+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T822+3C
click to zoom
3D Models
MAX17624ATA+T - Analog Devices - 3D model - Small Outline No-lead - T822+3C
click to zoom

MAX17624ATA+T Details

  • Manufacturer Part Number:

    MAX17624ATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    4160 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17624ATA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17624ATA+T can be found in the MAX17624 Evaluation Kit User Guide (UG1349) and the MAX17624 Layout Guidelines application note (AN5411). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17624ATA+T is a highly configurable device that can be tailored to specific battery chemistries. The device's configuration is done through the I2C interface, and the specific settings will depend on the battery chemistry and application requirements. Refer to the MAX17624 datasheet and the MAX17624 Configuration and Programming Guide (UG1348) for more information on configuring the device for different battery chemistries.
  • The MAX17624ATA+T can support charging currents up to 4A, but the actual maximum charging current will depend on the specific application and the thermal management of the device. Refer to the MAX17624 datasheet and the MAX17624 Thermal Management application note (AN5412) for more information on thermal management and maximum charging currents.
  • The MAX17624ATA+T is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. Refer to the MAX17624 datasheet and the MAX17624 Reliability and Quality application note (AN5413) for more information on the device's performance and reliability at high temperatures.
  • Troubleshooting issues with the MAX17624ATA+T can be done using a combination of tools and techniques. Refer to the MAX17624 datasheet, the MAX17624 Troubleshooting Guide (UG1350), and the MAX17624 FAQ (Frequently Asked Questions) document for more information on troubleshooting common issues and debugging techniques.
