MAX17632AATE+ - Analog Devices

Description: Switching Voltage Regulators 36V, 2A Step-Down DC-DC Converter

Download MAX17632AATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

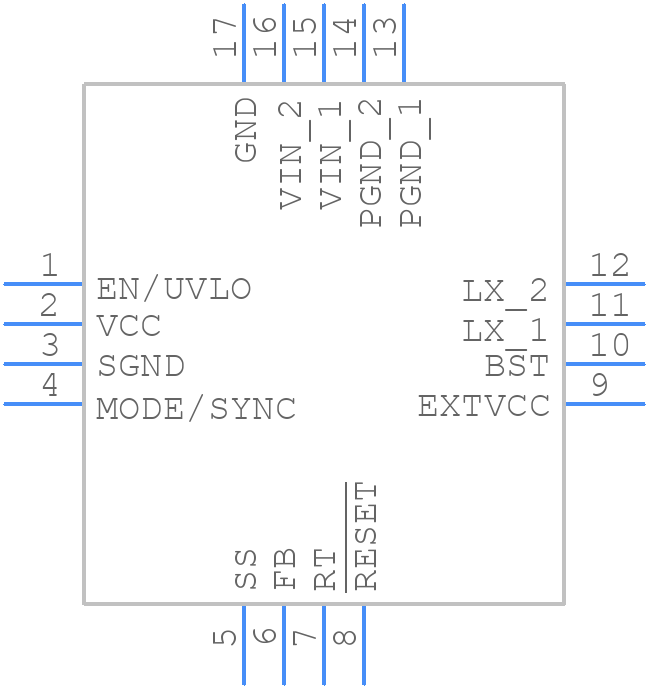

MAX17632AATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17632AATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX17632AATE+
click to zoom
3D Models
MAX17632AATE+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX17632AATE+
click to zoom

MAX17632AATE+ Details

  • Manufacturer Part Number:

    MAX17632AATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-02-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES WITH PFM CONTROL TECH

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.6 A

  • Output Voltage-Max:

    3.43 V

  • Output Voltage-Min:

    3.26 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17632AATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17632AATE+ can be found in the MAX17632AATE+ Evaluation Kit User Guide (UG-1143) and the MAX17632AATE+ Layout Guidelines application note (AN-1144). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17632AATE+ can be configured for different input voltage ranges by adjusting the values of the external resistors R1 and R2. The datasheet provides a table with recommended resistor values for different input voltage ranges. Additionally, the MAX17632AATE+ Evaluation Kit User Guide (UG-1143) provides a detailed example of how to configure the device for a specific input voltage range.
  • The maximum output current capability of the MAX17632AATE+ is 3A. However, the actual output current capability may be limited by the thermal performance of the device and the PCB layout. It is recommended to follow the thermal management guidelines provided in the datasheet and the MAX17632AATE+ Layout Guidelines application note (AN-1144) to ensure reliable operation.
  • The MAX17632AATE+ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the recommended component values. Additionally, the MAX17632AATE+ Evaluation Kit User Guide (UG-1143) provides an example of how to implement overcurrent protection in a typical application.
  • The EN pin on the MAX17632AATE+ is an active-high enable input that allows the device to be turned on and off. When the EN pin is high, the device is enabled and operates normally. When the EN pin is low, the device is disabled and enters a low-power shutdown mode. This feature can be used to reduce power consumption in applications where the device is not always needed.
