MAX17632BATE+ - Analog Devices

Description: Switching Voltage Regulators 36V 2A DC-DC Converter

Download MAX17632BATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

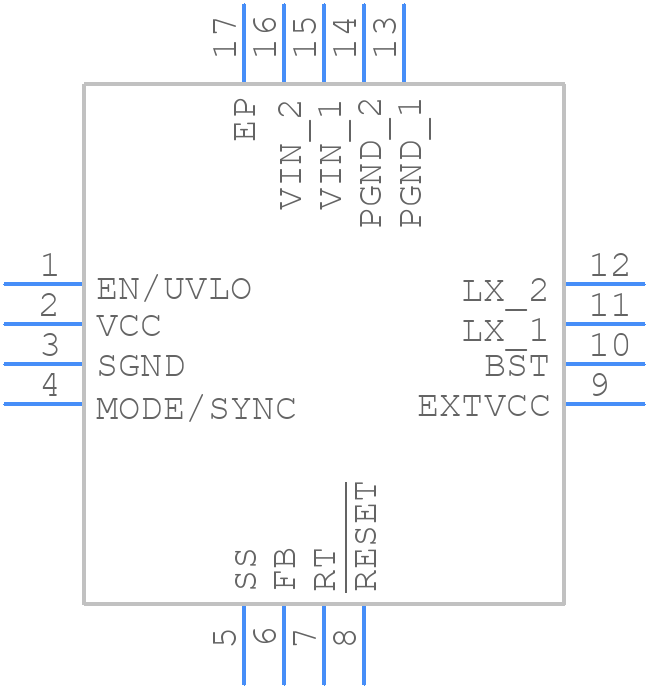

MAX17632BATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17632BATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 76385-304LF
click to zoom
3D Models
MAX17632BATE+ - Analog Devices - 3D model - Quad Flat No-Lead - 76385-304LF
click to zoom

MAX17632BATE+ Details

  • Manufacturer Part Number:

    MAX17632BATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-02-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES WITH PFM CONTROL TECH

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.6 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17632BATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17632BATE+ involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. It's also important to keep the device away from high-current carrying traces and heat sources.
  • To optimize the performance of the MAX17632BATE+, you should consider factors such as the input voltage range, output voltage requirements, and load current. You should also ensure that the device is operated within its recommended operating conditions, and that the input and output capacitors are properly selected and placed.
  • The MAX17632BATE+ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated at a junction temperature below 125°C. This can be achieved by providing adequate heat sinking, using a thermal pad, and ensuring good airflow around the device.
  • To troubleshoot issues with the MAX17632BATE+, start by verifying that the device is properly powered and that the input and output voltages are within the recommended ranges. Check for proper capacitor selection and placement, and ensure that the device is operated within its recommended operating conditions. Use an oscilloscope to check for oscillations or other anomalies on the output voltage.
  • Yes, the MAX17632BATE+ is suitable for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices, and it has a high level of reliability and ruggedness. However, it's essential to follow proper design and manufacturing practices to ensure the device meets the specific requirements of the application.
