MAX17633BATP+T - Analog Devices

Description: Switching Voltage Regulators 36V, 3.5A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Download MAX17633BATP+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

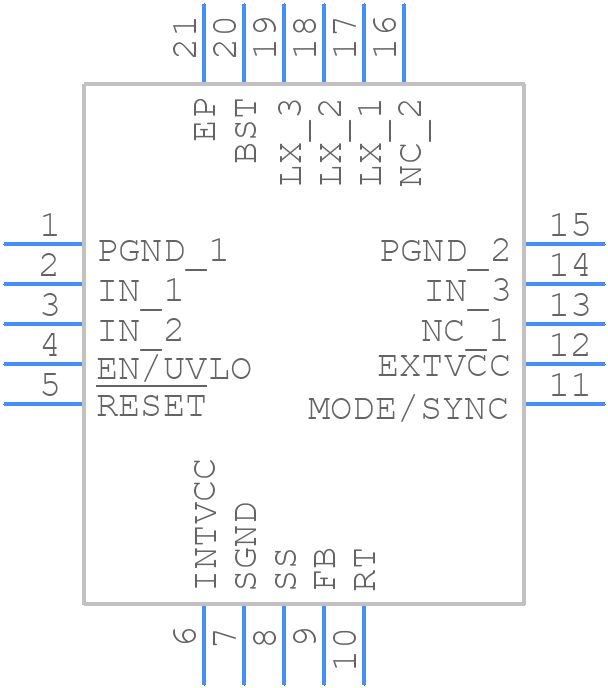

MAX17633BATP+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17633BATP+T - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX17633BATP+Taa
click to zoom
3D Models
MAX17633BATP+T - Analog Devices - 3D model - Quad Flat No-Lead - MAX17633BATP+Taa
click to zoom

MAX17633BATP+T Details

  • Manufacturer Part Number:

    MAX17633BATP+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    PFM CONTROL TECHNIQUE ALSO AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17633BATP+T Frequently Asked Questions (FAQs)

  • The datasheet provides general guidelines for PCB layout, but for optimal performance, it's recommended to follow Analog Devices' application note AN-215: 'PCB Layout Considerations for Switching Regulators'. This note provides detailed guidelines for component placement, trace routing, and thermal management.
  • The datasheet provides inductor selection guidelines, but for a specific application, it's recommended to use Analog Devices' inductor selection tool or consult with an applications engineer. Factors such as inductor value, saturation current, and core material affect the converter's performance and stability.
  • The datasheet specifies an operating temperature range of -40°C to +125°C, but the maximum ambient temperature depends on the specific application and the device's power dissipation. For example, if the device is dissipating 1W, the maximum ambient temperature would be around 85°C. Consult with an applications engineer for specific guidance.
  • The MAX17633BATP+T is an automotive-grade device, but for high-reliability or automotive applications, additional testing and validation may be required. Consult with Analog Devices' applications engineers to discuss specific requirements and ensure the device meets the necessary standards and regulations.
  • Analog Devices provides a troubleshooting guide in the datasheet, but for more complex issues, it's recommended to consult with an applications engineer or use Analog Devices' online support resources, such as the EngineerZone forum or the Technical Support Center.
