MAX17640AATA+T - Analog Devices

Description: 60V, 400mA, Ultra-Small, High-Efficiency, Synchronous Step-Down DC-DC Converters

Download MAX17640AATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

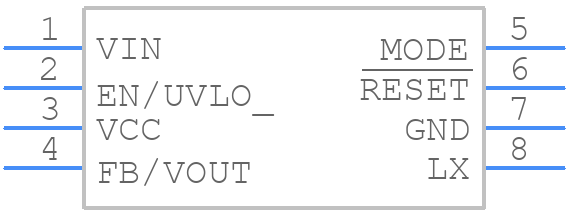

MAX17640AATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17640AATA+T - Analog Devices PCB footprint - Other - Other - MAX17640AATA+T
click to zoom
3D Models
MAX17640AATA+T - Analog Devices - 3D model - Other - MAX17640AATA+T
click to zoom

MAX17640AATA+T Details

  • Manufacturer Part Number:

    MAX17640AATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-05-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    PFM CONTROL ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Output Voltage-Max:

    3.35 V

  • Output Voltage-Min:

    3.25 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.07,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    535 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX17640AATA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17640AATA+T can be found in the MAX17640 Evaluation Kit User Guide (UG1111) and the MAX17640 Layout Guidelines application note (AN8833). These resources provide guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17640AATA+T is a highly configurable device, and configuration depends on the specific application requirements. Engineers can use the MAX17640 Evaluation Kit and the accompanying software tools, such as the MAX17640 Configurator Tool, to configure the device for their specific use case. Additionally, Analog Devices provides application notes and technical support to help with configuration and customization.
  • The MAX17640AATA+T has a thermal junction-to-ambient resistance (RθJA) of 42.5°C/W. To ensure reliable operation, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within the recommended operating temperature range (-40°C to +125°C).
  • Analog Devices provides a range of resources to help troubleshoot issues with the MAX17640AATA+T, including application notes, FAQs, and technical support. Engineers can also use the MAX17640 Evaluation Kit and accompanying software tools to debug and diagnose issues. Additionally, Analog Devices recommends following proper design and layout practices, as well as verifying the device's configuration and operation, to minimize the risk of errors or unexpected behavior.
  • The MAX17640AATA+T is a highly flexible device that can be used with a wide range of microcontrollers and system architectures. Engineers should consult the MAX17640 datasheet and application notes to determine compatibility with their specific system. Additionally, Analog Devices provides technical support and can provide guidance on integration and compatibility.
