MAX17644CATE+ - Analog Devices

Description: Switching Voltage Regulators 4.5V to 36V, 2.7A, H igh-Efficiency, Syn

Download MAX17644CATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

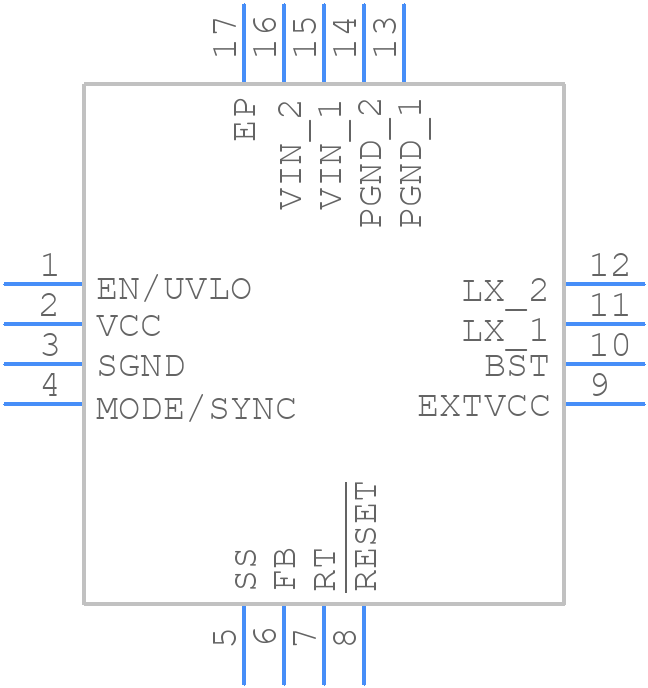

MAX17644CATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17644CATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+ 5C
click to zoom
3D Models
MAX17644CATE+ - Analog Devices - 3D model - Quad Flat No-Lead - T1633+ 5C
click to zoom

MAX17644CATE+ Details

  • Manufacturer Part Number:

    MAX17644CATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.7 A

  • Output Voltage-Max:

    32.4 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17644CATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17644CATE+ can be found in the MAX17644 Evaluation Kit documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout checklist in the datasheet that highlights critical components and layout considerations.
  • To optimize the performance of the MAX17644CATE+, it's essential to follow the recommended layout and placement guidelines, ensure proper power supply decoupling, and optimize the input and output filtering. Additionally, Analog Devices provides an application note (AN5453) that provides detailed design guidelines and optimization techniques for the MAX17644CATE+.
  • The MAX17644CATE+ has an operating temperature range of -40°C to +125°C, as specified in the datasheet. However, it's essential to note that the device's performance may degrade at higher temperatures, and the user should ensure that the device is operated within the recommended temperature range for optimal performance.
  • The MAX17644CATE+ is a surface-mount device, and its reliability in high-vibration or high-shock environments depends on the quality of the PCB assembly and the mounting method. Analog Devices recommends following the recommended PCB assembly and mounting guidelines to ensure the device's reliability in such environments.
  • To troubleshoot issues with the MAX17644CATE+, it's essential to follow a systematic approach, starting with verifying the power supply and input/output connections. Analog Devices provides a troubleshooting guide in the datasheet, which covers common issues and their solutions. Additionally, the MAX17644 Evaluation Kit documentation provides detailed troubleshooting guidelines and FAQs.
