MAX17645DATA+T - Analog Devices

Description: 4.5V to 36V, 1A, High-Efficiency, Synchronous Step-Down DC-DC Converter

Download MAX17645DATA+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

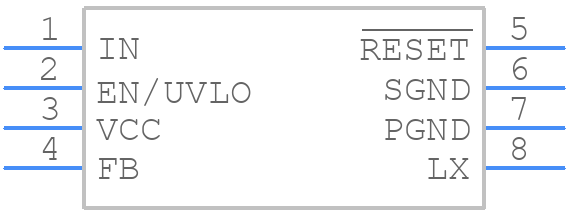

MAX17645DATA+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17645DATA+T - Analog Devices PCB footprint - Other - Other - T822CN+1 _2022
click to zoom
3D Models
MAX17645DATA+T - Analog Devices - 3D model - Other - T822CN+1 _2022
click to zoom

MAX17645DATA+T Details

  • Manufacturer Part Number:

    MAX17645DATA+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-LFCSP-2X2X0.75

  • Package Description:

    TDFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-LFCSP-2X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2022-04-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    32.04 V

  • Output Voltage-Min:

    0.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.17 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    695 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MAX17645DATA+T Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17645DATA+T can be found in the MAX17645 Evaluation Kit documentation and the MAX17645 layout guide, which provides guidelines for PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17645DATA+T can be configured for different battery chemistries by adjusting the voltage and current settings through the I2C interface. The device also has built-in support for common battery chemistries such as Li-ion, Li-polymer, and Lead-Acid. Refer to the datasheet and application notes for specific configuration details.
  • The MAX17645DATA+T has a voltage measurement accuracy of ±0.5% and a current measurement accuracy of ±1.5% over the operating temperature range. The device also has a built-in calibration feature to improve measurement accuracy.
  • The MAX17645DATA+T is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's accuracy and reliability may be affected at extreme temperatures, and proper thermal management is recommended to ensure optimal performance.
  • The MAX17645DATA+T has built-in overcharge and over-discharge protection features that can be configured through the I2C interface. The device can also be used with external protection circuits to provide additional protection features. Refer to the datasheet and application notes for specific implementation details.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17645DATA+T Overview

Use the download button to access the MAX17645DATA+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Switching Regulator or Controllers
