MAX17662BATE+ - Analog Devices

Description: Switching Voltage Regulators 4.5V to 36V, 2A High Efficiency Step-Down DC-DC Converter

Download MAX17662BATE+ Model

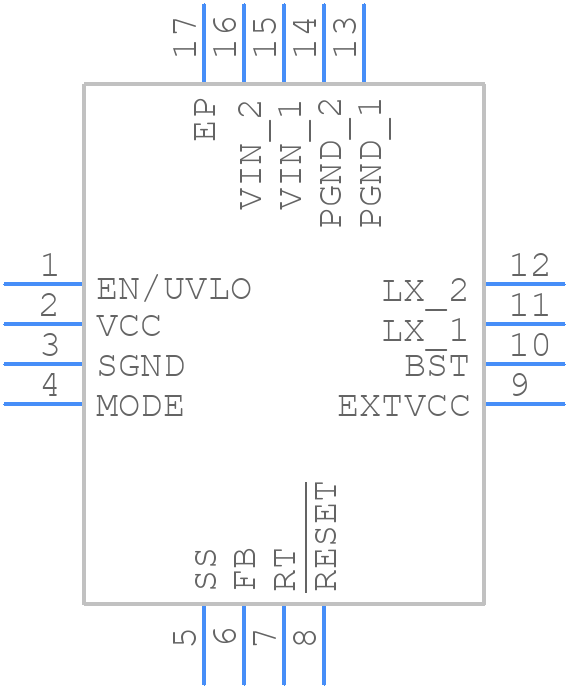

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX17662BATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T1633+5C
click to zoom
3D Models
MAX17662BATE+ - Analog Devices  - 3D model - Quad Flat No-Lead - T1633+5C
click to zoom

MAX17662BATE+ Details

  • Manufacturer Part Number:

    MAX17662BATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-01-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.1 A

  • Output Voltage-Max:

    32.4 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2420 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm
