MAX17690ATE+ - Analog Devices

Description: 60V, No-Opto Isolated Flyback Controller

Download MAX17690ATE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

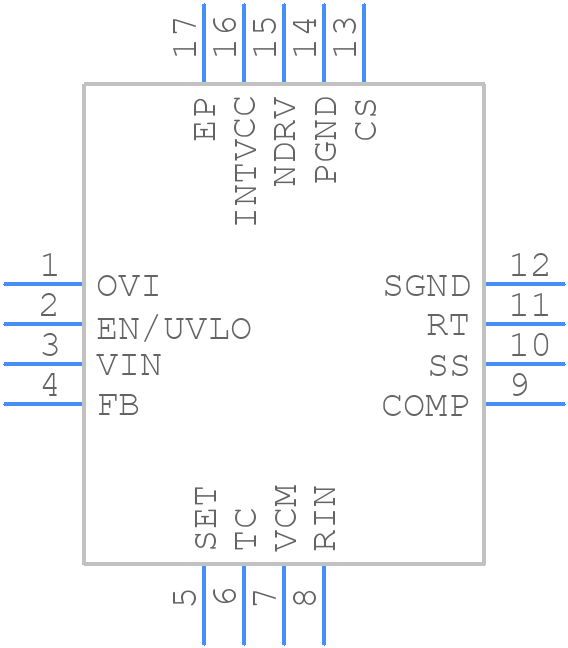

MAX17690ATE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17690ATE+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-LFCSP_SS-3X3Xvdf0.75_2023-8
click to zoom
3D Models
MAX17690ATE+ - Analog Devices - 3D model - Quad Flat No-Lead - 16-LFCSP_SS-3X3Xvdf0.75_2023-8
click to zoom

MAX17690ATE+ Details

  • Manufacturer Part Number:

    MAX17690ATE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-LFCSP-3X3X0.75

  • Package Description:

    TQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-09-16

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    250 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17690ATE+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17690ATE+ can be found in the MAX17690ATE+ Evaluation Kit User Guide (UG-1143) and the MAX17690ATE+ Layout Guidelines application note (AN-1144). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17690ATE+ can be configured for different input voltage ranges by adjusting the values of the external resistors R1 and R2. The configuration can be done using the equations and guidelines provided in the datasheet, section 7.1 'Input Voltage Range Selection'. Additionally, the MAX17690ATE+ Evaluation Kit User Guide (UG-1143) provides examples of different input voltage range configurations.
  • The maximum output current capability of the MAX17690ATE+ is 3A. However, the actual output current capability may be limited by the thermal performance of the device and the PCB layout. It is recommended to follow the thermal management guidelines provided in the datasheet and the MAX17690ATE+ Layout Guidelines application note (AN-1144) to ensure reliable operation.
  • The MAX17690ATE+ has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The overcurrent protection threshold can be set by adjusting the values of the resistor and capacitor. The datasheet, section 7.3 'Overcurrent Protection', provides more information on how to implement overcurrent protection with the MAX17690ATE+.
  • The recommended input capacitor value and type for the MAX17690ATE+ depend on the input voltage range and the desired performance. The datasheet, section 7.2 'Input Capacitor Selection', provides guidelines for selecting the input capacitor. In general, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended.
