MAX17691AATC+ - Analog Devices

Description: 4.2V??60V No-Opto Isolated Flyback Converter with Integrated FET

Download MAX17691AATC+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

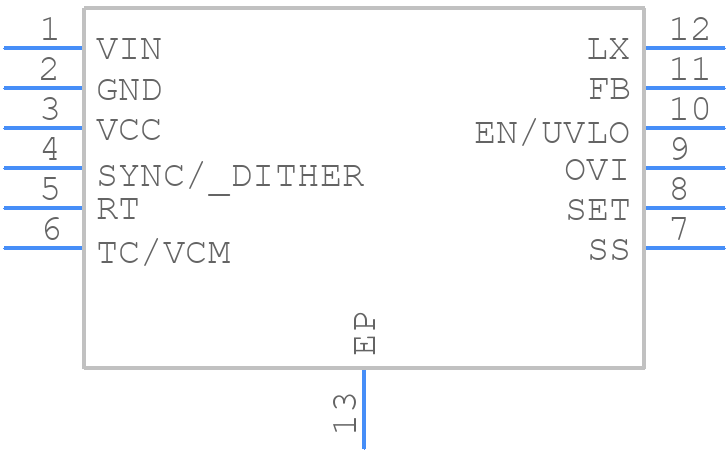

MAX17691AATC+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17691AATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX17691AATC+ - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX17691AATC+ Details

  • Manufacturer Part Number:

    MAX17691AATC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Package Body Material:

    SQUARE

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    371 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17691AATC+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX17691AATC+ can be found in the MAX17691 Evaluation Kit User Guide (UG1343) and the MAX17691 Layout Guidelines application note (AN8831). These resources provide detailed guidance on PCB layout, component placement, and thermal management to ensure optimal performance and reliability.
  • The MAX17691AATC+ is a highly configurable device, and the configuration process can be complex. Analog Devices provides a software tool called the MAX17691 Configurator, which is a graphical user interface (GUI) that allows users to easily configure the device for their specific application. The configurator can be downloaded from the Analog Devices website.
  • The MAX17691AATC+ has an absolute maximum input voltage rating of 36V. However, the recommended operating input voltage range is 4.5V to 28V. Exceeding the absolute maximum input voltage rating can damage the device.
  • Analog Devices provides a troubleshooting guide for the MAX17691AATC+ in the device's datasheet and application notes. Additionally, the company offers technical support through its website, including online forums, FAQs, and direct support from application engineers.
  • The MAX17691AATC+ is a digital power monitor and controller that communicates with a microcontroller or system through an I2C or SPI interface. As long as the microcontroller or system has an I2C or SPI interface and can provide the necessary power supply and clock signals, the MAX17691AATC+ should be compatible. However, it is recommended to review the datasheet and application notes to ensure compatibility and to consult with Analog Devices' technical support if necessary.
