MAX17693AATC+ - Analog Devices

Description: 4.2V??60V No-Opto Isolated Flyback Converter with Integrated FET

Download MAX17693AATC+ Model
Schematic

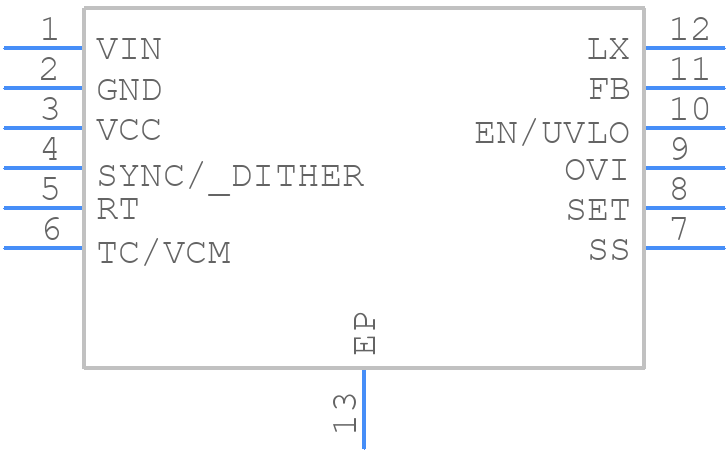

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX17693AATC+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX17693AATC+ - Analog Devices  - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX17693AATC+ Details

  • Manufacturer Part Number:

    MAX17693AATC+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    371 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17693AATC+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX17693AATC+ is to keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's recommended to use a thermal relief pattern for the exposed pad to ensure good thermal performance.
  • To optimize the compensation network for the MAX17693AATC+, start by following the recommended compensation network values in the datasheet. Then, use simulation tools such as SPICE or a circuit simulator to model the converter and adjust the compensation network values to achieve the desired stability and transient response. It's also recommended to use a network analyzer to measure the loop gain and phase margin of the converter and adjust the compensation network accordingly.
  • The maximum input voltage that can be applied to the MAX17693AATC+ is 42V. However, it's recommended to operate the device within the recommended input voltage range of 4.5V to 36V to ensure reliable operation and to prevent damage to the device.
  • To ensure the MAX17693AATC+ meets the required EMC standards, follow the recommended PCB layout and component placement guidelines in the datasheet. Additionally, use a shielded enclosure and ensure that the device is properly grounded. It's also recommended to use EMI filters and shielding components such as ferrite beads and common-mode chokes to reduce electromagnetic interference.
  • The thermal derating curve for the MAX17693AATC+ can be found in the datasheet. The device is rated for operation up to 125°C junction temperature, and the output current rating is derated above 85°C ambient temperature. The derating curve shows the maximum output current that can be delivered by the device at a given ambient temperature.
