MAX17703ATG+ - Analog Devices

Description: 4.5V to 60V, Synchronous Step-Down Li-Ion Battery Charger Controller

Download MAX17703ATG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

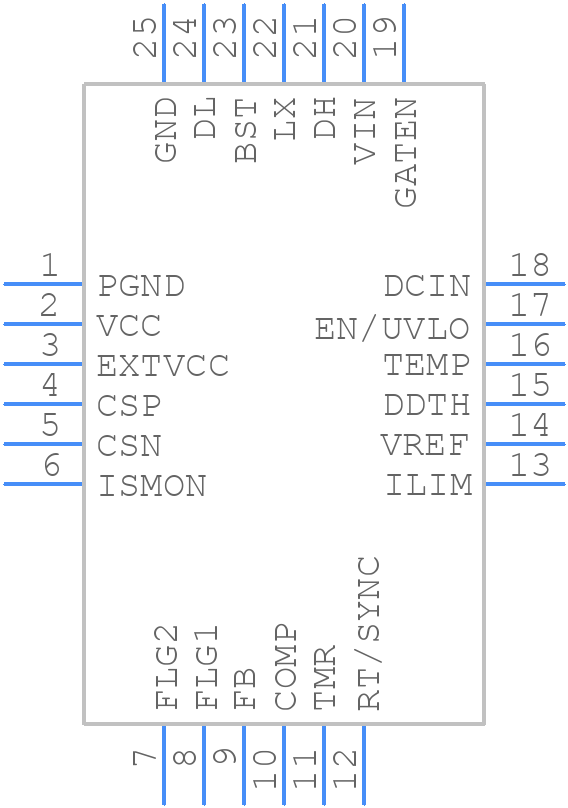

MAX17703ATG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17703ATG+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX17703ATG+-
click to zoom
3D Models
MAX17703ATG+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX17703ATG+-
click to zoom

MAX17703ATG+ Details

  • Manufacturer Part Number:

    MAX17703ATG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-LFCSP-4X4X0.75

  • Package Description:

    TQFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-LFCSP-4X4X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-06-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.135 A

  • Output Voltage-Max:

    12 V

  • Output Voltage-Min:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2310 kHz

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX17703ATG+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17703ATG+ involves keeping the high-current paths short and wide, using multiple vias to connect the GND pins to the ground plane, and placing the input capacitors close to the VIN pin. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the MAX17703 evaluation kit for a reference design.
  • When selecting an inductor for the MAX17703ATG+, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 2x the maximum output current, and a DC resistance of less than 100mΩ. The core material should be able to handle the switching frequency of the MAX17703ATG+ (up to 2.2MHz).
  • The maximum ambient temperature for the MAX17703ATG+ is 125°C. However, the device's junction temperature (TJ) should not exceed 150°C. To ensure reliable operation, it's essential to consider the thermal design and heat dissipation of the system.
  • Yes, the MAX17703ATG+ is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress. Additionally, consider using a vibration-resistant inductor and capacitors.
  • To troubleshoot the MAX17703ATG+, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component placement for any errors or omissions. Use an oscilloscope to monitor the switching node (SW) and output voltage (VOUT) waveforms. Consult the MAX17703ATG+ datasheet and application notes for guidance on troubleshooting common issues.
