MAX17760ATC+T - Analog Devices

Description: 4.5V to 76V, 300mA, High-Efficiency, Synchronous Step-Down DC-DC Converter

Download MAX17760ATC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

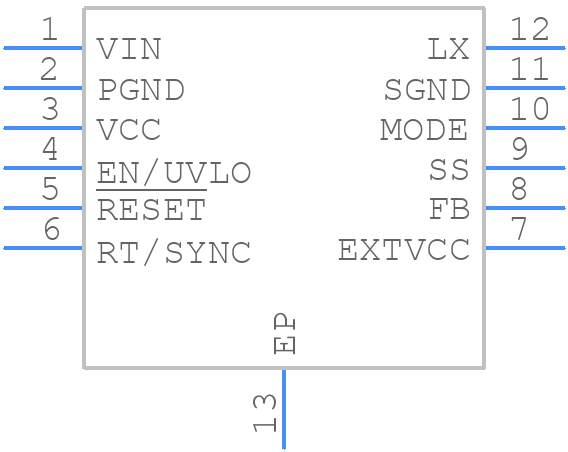

MAX17760ATC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17760ATC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX17760ATC+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX17760ATC+T Details

  • Manufacturer Part Number:

    MAX17760ATC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-06-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    66.88 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    0.66 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17760ATC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17760ATC+T involves keeping the high-current paths short and wide, using multiple vias to connect the GND pins to the ground plane, and placing the input capacitors close to the VIN pin. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the MAX17760 evaluation kit for a reference design.
  • To select the right inductor for the MAX17760ATC+T, consider the maximum current rating, inductance value, and DC resistance. A higher inductance value can reduce the ripple current, but may increase the size of the inductor. A good starting point is to use an inductor with a current rating of at least 2A and an inductance value of 2.2μH to 4.7μH.
  • The MAX17760ATC+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot the MAX17760ATC+T, first check the input voltage and ensure it's within the recommended range. Verify that the output voltage is set correctly using the FB pin. Check for any short circuits or open circuits on the PCB. Use an oscilloscope to measure the switching frequency and ensure it's within the recommended range. Consult the datasheet and application notes for more detailed troubleshooting steps.
  • Yes, the MAX17760ATC+T is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive systems. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX17760ATC+T Overview

Use the download button to access the MAX17760ATC+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX17, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
