MAX17761ATC+T - Analog Devices

Description: Switching Voltage Regulators PI07 - 76V DC-DC converter

Download MAX17761ATC+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

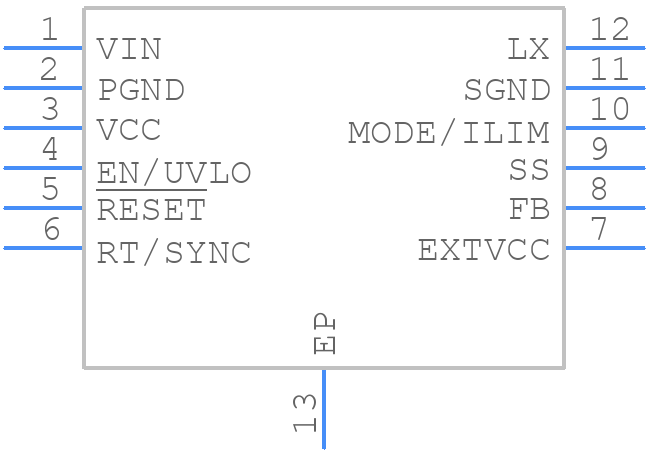

MAX17761ATC+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17761ATC+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C_2021
click to zoom
3D Models
MAX17761ATC+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C_2021
click to zoom

MAX17761ATC+T Details

  • Manufacturer Part Number:

    MAX17761ATC+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO HAS A CONTROL TECHNIQUE OF PFM

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    76 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    68.4 V

  • Output Voltage-Min:

    0.8 V

  • Package Body Material:

    SQUARE

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    660 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17761ATC+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX17761ATC+T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitors should be selected based on the input voltage range, ripple current, and ESR requirements. A good starting point is to use low-ESR capacitors with a capacitance value of 10uF to 22uF. The capacitor voltage rating should be at least 1.5 times the maximum input voltage.
  • The MAX17761ATC+T is rated for operation from -40°C to +125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It's recommended to use a heat sink or a thermal management system to keep the device temperature below 85°C.
  • The output voltage of the MAX17761ATC+T can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formula provided in the datasheet. The output voltage range is from 0.9V to 5.5V.
  • The MAX17761ATC+T is capable of delivering up to 3A of output current. However, the maximum output current may be limited by the input voltage, output voltage, and thermal considerations. It's recommended to check the device's thermal performance and power dissipation before selecting the output current.
