MAX17783CATB+T - Analog Devices

Description: 4.5V to 60V, 2.5A, High Efficiency, Step-Down DC-DC Converter

Download MAX17783CATB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

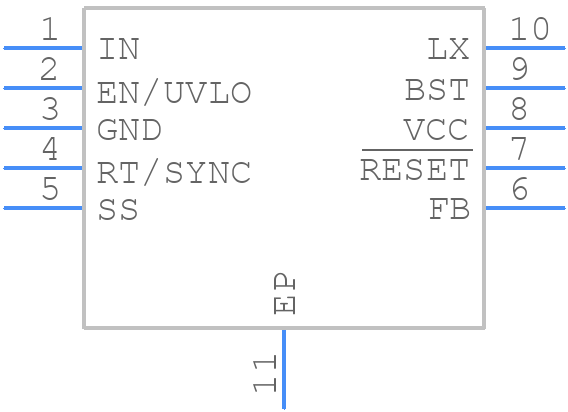

MAX17783CATB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX17783CATB+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX17783CATB+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX17783CATB+T Details

  • Manufacturer Part Number:

    MAX17783CATB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    6 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.6 A

  • Output Voltage-Max:

    54 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2450 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX17783CATB+T Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MAX17783CATB+T. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it's a good idea to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure accurate voltage monitoring, it's essential to follow the recommended layout and routing guidelines, use high-quality capacitors, and minimize noise and interference. Additionally, it's recommended to use a low-noise, low-impedance power supply, and to filter the input voltage to the MAX17783CATB+T using a low-pass filter.
  • The MAX17783CATB+T is rated for operation from -40°C to +125°C. However, it's recommended to derate the device's performance at higher temperatures, and to ensure that the device is properly cooled to prevent overheating.
  • The MAX17783CATB+T has built-in overvoltage protection (OVP) that can detect overvoltage conditions and shut down the device to prevent damage. However, it's still recommended to add external overvoltage protection circuitry, such as a voltage clamp or a zener diode, to provide additional protection against high-voltage transients.
  • The recommended input capacitor value for the MAX17783CATB+T is 10uF to 22uF, with a voltage rating of at least 25V. It's recommended to use a high-quality, low-ESR capacitor, such as a ceramic or film capacitor, to minimize noise and ensure stable operation.
