Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MAX1910EUB+T - Analog Devices

Description: LED Lighting Drivers 1.5x/2x High-Efficiency White LED Charge Pumps

Download MAX1910EUB+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

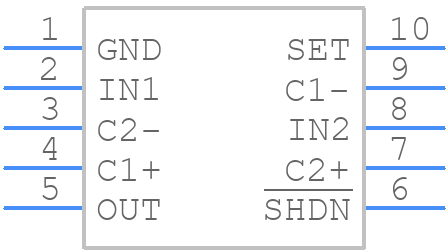

MAX1910EUB+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1910EUB+T - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10 µMAX_2022
click to zoom
3D Models
MAX1910EUB+T - Analog Devices - 3D model - Small Outline Packages - 10 µMAX_2022
click to zoom

MAX1910EUB+T Details

  • Manufacturer Part Number:

    MAX1910EUB+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO-N/A

  • Package Description:

    TSSOP, TSSOP10,.19,20

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO-N/A

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-06-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Input Voltage-Max:

    5.3 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.08 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    DOUBLER INVERTER

  • Switching Frequency-Max:

    875 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX1910EUB+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX1910EUB+T involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals to minimize noise and interference.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensing point, and the thermal interface material should be used to improve heat transfer.
  • The maximum allowed voltage on the input pins of the MAX1910EUB+T is 6V. Exceeding this voltage can cause damage to the device. It's recommended to use voltage limiting resistors or clamping diodes to protect the device from overvoltage conditions.
  • To troubleshoot issues with the MAX1910EUB+T, start by checking the power supply voltage, ensuring that it's within the recommended range. Then, verify that the device is properly configured and that the communication protocol is correct. Use a logic analyzer or oscilloscope to debug the communication signals. Finally, check the PCB layout and ensure that it's free from noise and interference.
  • Yes, the MAX1910EUB+T is rated for operation up to 125°C, making it suitable for high-temperature environments. However, it's essential to ensure that the device is properly heat-sinked and that the PCB is designed to withstand the high temperatures. Additionally, the device's accuracy and reliability may be affected at high temperatures, so it's recommended to consult the datasheet and perform thorough testing before deploying the device in a high-temperature application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1910EUB+T Overview

Use the download button to access the MAX1910EUB+T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX19, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to MAX1910EUB+T

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

MAX1910EUB+T Alternates

Showing results

Image Part Number Model
Part Image MAX1910EUB+ Maxim Integrated Products

Switched Capacitor Regulator, 0.08A, 875kHz Switching Freq-Max, BICMOS, PDSO10
Part Image MAX1910EUB+ Analog Devices Inc

Switched Capacitor Regulator, 0.08A, 875kHz Switching Freq-Max, BICMOS, PDSO10
Part Image MAX1910EUB Maxim Integrated Products

Switched Capacitor Regulator, 0.12A, 875kHz Switching Freq-Max, BICMOS, PDSO10
Part Image MAX1910EUB-T Maxim Integrated Products

Switched Capacitor Regulator, 0.12A, 875kHz Switching Freq-Max, BICMOS, PDSO10
