MAX1968EUI+ - Analog Devices

Description: Gate Drivers Power Driver for Peltier TEC Modules

Download MAX1968EUI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

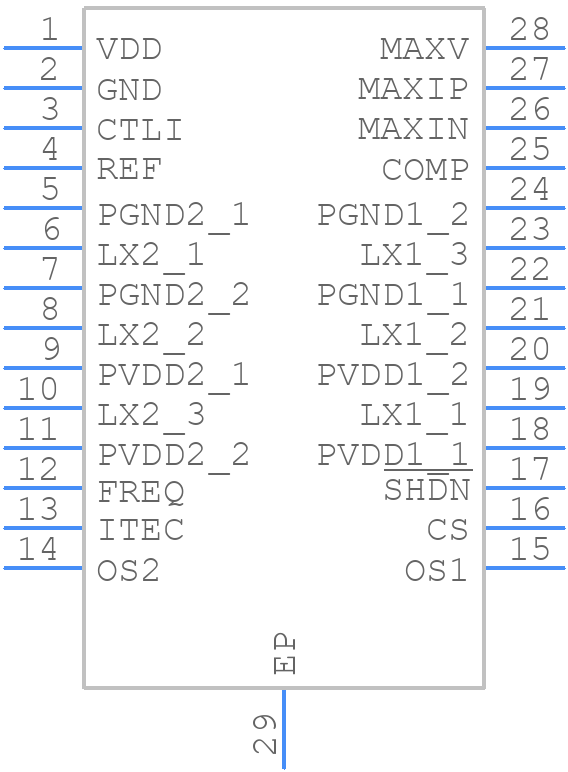

MAX1968EUI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1968EUI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX1968EUI+
click to zoom
3D Models
MAX1968EUI+ - Analog Devices - 3D model - Small Outline Packages - MAX1968EUI+
click to zoom

MAX1968EUI+ Details

  • Manufacturer Part Number:

    MAX1968EUI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-TSSOP_4.4_EP-4.4_MM

  • Package Description:

    4.40 MM, EXPOSED PAD, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-TSSOP_4.4_EP-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2002-05-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PHASE-SHIFT CONTROL

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX1968EUI+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX1968EUI+ can be found in the MAX1968EUI+ Evaluation Kit documentation, which provides a detailed layout guide and PCB design files. Additionally, Analog Devices provides a layout checklist in the datasheet that highlights key considerations for optimal performance.
  • To optimize the performance of the MAX1968EUI+, engineers should consider factors such as input impedance, output loading, and PCB layout. Analog Devices provides application notes and design guides that provide guidance on optimizing performance in specific applications, such as audio and industrial designs.
  • The MAX1968EUI+ has a maximum junction temperature of 150°C. Engineers should ensure that the device is properly heat-sinked and that the PCB design allows for adequate airflow to prevent overheating. The datasheet provides thermal resistance values and recommended thermal design guidelines.
  • Analog Devices provides a troubleshooting guide in the datasheet that covers common issues such as oscillation, noise, and distortion. Engineers can also consult the MAX1968EUI+ Evaluation Kit documentation and application notes for guidance on troubleshooting specific issues.
  • The MAX1968EUI+ has built-in ESD protection, but engineers should still follow proper ESD handling procedures to prevent damage. The datasheet provides guidance on ESD protection and latch-up prevention, and engineers should also consult the JEDEC standards for ESD handling and protection.
