MAX196BEAI+ - Analog Devices

Description: Analog to Digital Converters - ADC 12-Bit 6Ch 100ksps 4.18V Precision ADC

Download MAX196BEAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

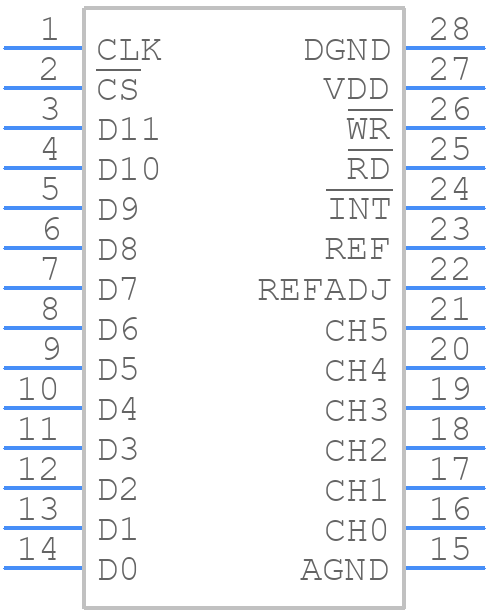

MAX196BEAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX196BEAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SSOP
click to zoom
3D Models
MAX196BEAI+ - Analog Devices - 3D model - Small Outline Packages - 28 SSOP
click to zoom

MAX196BEAI+ Details

  • Manufacturer Part Number:

    MAX196BEAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    0.200 INCH, 0.65 MM PITCH, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1995-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
