MAX197AEAI+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX197AEAI+ - Data Acquisition System, Multirange 12 Bit DAC, 4.75 V to 5.25 V, SSOP-28

Download MAX197AEAI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

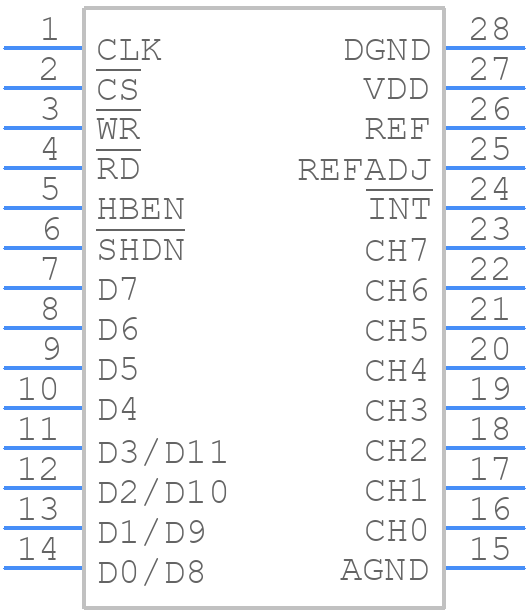

Symbol
MAX197AEAI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX197AEAI+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28 SSOP
click to zoom
3D Models
MAX197AEAI+ - Analog Devices - 3D model - Small Outline Packages - 28 SSOP
click to zoom

MAX197AEAI+ Details

  • Manufacturer Part Number:

    MAX197AEAI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-SSOP-5.3_MM

  • Package Description:

    0.209 INCH, ROHS COMPLIANT, SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1999-05-28

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

MAX197AEAI+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX197AEAI+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To optimize the performance of the MAX197AEAI+ in a high-temperature environment, it's recommended to use a heat sink, ensure good airflow, and reduce the power dissipation by optimizing the output voltage and current. Additionally, the device should be operated within its recommended operating temperature range of -40°C to +125°C.
  • The maximum output current capability of the MAX197AEAI+ is 1A. However, the device can deliver higher currents for short durations, but it's recommended to operate within the specified maximum output current to ensure reliability and prevent overheating.
  • To protect the MAX197AEAI+ from input voltage surges and spikes, it's recommended to use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, a fuse or a current-limiting resistor can be used to limit the input current.
  • The recommended input capacitor value for the MAX197AEAI+ is 10uF to 22uF, and it should be a low-ESR ceramic capacitor or a film capacitor. The input capacitor should be placed close to the device and connected between the input pin and the ground pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX197AEAI+ Overview

Use the download button to access the MAX197AEAI+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX19, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
