MAX20006AFOC/VY+ - Analog Devices

Description: Switching Voltage Regulators 36V, 220kHz to 2.2MHz, 4A/6A/8A Fully Integrated Step-Down Converters

Download MAX20006AFOC/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

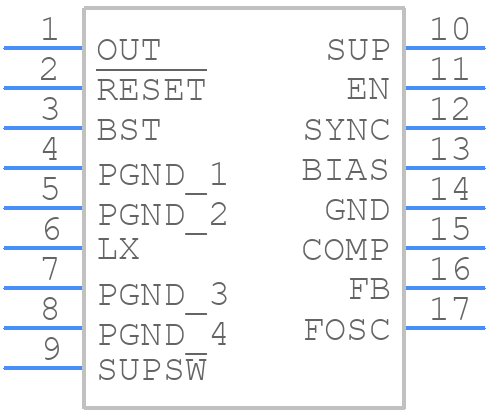

MAX20006AFOC/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20006AFOC/VY+ - Analog Devices PCB footprint - Other - Other - 90-100056_REVA
click to zoom
3D Models
MAX20006AFOC/VY+ - Analog Devices - 3D model - Other - 90-100056_REVA
click to zoom

MAX20006AFOC/VY+ Details

  • Manufacturer Part Number:

    MAX20006AFOC/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Package Description:

    FC2QFN-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 4.5V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12.5 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC17,.14X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    6000 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX20006AFOC/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20006AFOC/VY+ involves keeping the high-frequency switching nodes (e.g., LX, VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Optimizing the compensation network for the MAX20006AFOC/VY+ involves selecting the right values for the compensation components (e.g., RCOMP, CCOMP) based on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the desired transient response and stability margin. Simulation tools like SPICE or MATLAB can be used to aid in the optimization process.
  • The maximum allowed input voltage ripple for the MAX20006AFOC/VY+ is not explicitly specified in the datasheet, but it is generally recommended to keep the input voltage ripple below 1% of the nominal input voltage to ensure reliable operation and minimize the risk of overvoltage or undervoltage faults.
  • Yes, the MAX20006AFOC/VY+ can be used in a synchronous rectification configuration, where the high-side and low-side FETs are driven in a complementary manner to reduce power losses and improve efficiency. However, this requires careful design and layout considerations to ensure proper operation and minimize the risk of shoot-through currents.
  • Troubleshooting common issues with the MAX20006AFOC/VY+ involves using a systematic approach to identify the root cause of the problem. This may involve checking the input voltage, output voltage, and current sense signals, as well as verifying the proper operation of the feedback loop and compensation network. The datasheet and application notes provide guidance on troubleshooting and fault detection.
