MAX20008AFOC/VY+ - Analog Devices

Description: Switching Voltage Regulators 36V, 220kHz to 2.2MHz, 4A/6A/8A Fully integrated step down converter

Download MAX20008AFOC/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

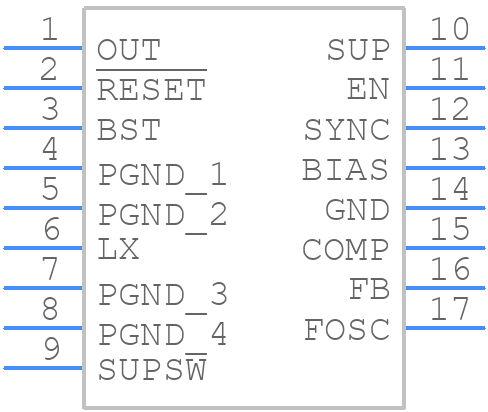

MAX20008AFOC/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20008AFOC/VY+ - Analog Devices PCB footprint - Other - Other - MAX20008AFOC/VY+-1
click to zoom
3D Models
MAX20008AFOC/VY+ - Analog Devices - 3D model - Other - MAX20008AFOC/VY+-1
click to zoom

MAX20008AFOC/VY+ Details

  • Manufacturer Part Number:

    MAX20008AFOC/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Package Description:

    FC2QFN-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 4.5V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    17.5 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC17,.14X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    8000 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX20008AFOC/VY+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20008AFOC/VY+ is to follow a 4-layer stack-up with a solid ground plane on the bottom layer, a power plane on the internal layer, and signal traces on the top and internal layers. This helps to reduce EMI and improve thermal performance. Additionally, it is recommended to keep the input and output traces as short as possible and to use a common-mode choke to filter the input voltage.
  • To optimize the compensation network for the MAX20008AFOC/VY+, it is recommended to follow the guidelines provided in the datasheet and application notes. This includes selecting the correct values for the compensation resistors and capacitors based on the output voltage and load current. Additionally, it is recommended to use a network analyzer to measure the loop gain and phase margin of the converter and adjust the compensation network accordingly.
  • The maximum operating temperature range for the MAX20008AFOC/VY+ is -40°C to +125°C. However, the device can operate up to +150°C for short periods of time during startup or fault conditions. It is recommended to follow the thermal design guidelines provided in the datasheet to ensure reliable operation over the entire temperature range.
  • To ensure EMC with the MAX20008AFOC/VY+, it is recommended to follow the guidelines provided in the datasheet and application notes. This includes using a shielded enclosure, keeping the input and output cables as short as possible, and using EMI filters on the input and output lines. Additionally, it is recommended to perform EMC testing to ensure compliance with relevant standards and regulations.
  • The recommended input voltage range for the MAX20008AFOC/VY+ is 4.5V to 5.5V. However, the device can operate with input voltages as low as 4V and as high as 6V, but with reduced performance and efficiency. It is recommended to follow the guidelines provided in the datasheet to ensure reliable operation over the entire input voltage range.
