MAX20008AFOC/VY+T - Analog Devices

Description: Switching Voltage Regulators 36V, 220kHz to 2.2MHz, 4A/6A/8A Fully integrated step down converter

Download MAX20008AFOC/VY+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

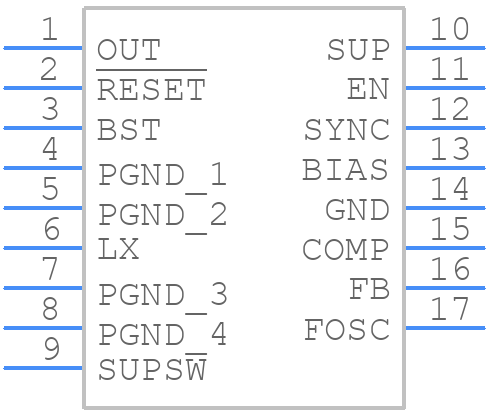

MAX20008AFOC/VY+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20008AFOC/VY+T - Analog Devices PCB footprint - Other - Other - MAX20008AFOC/VY+T-1
click to zoom
3D Models
MAX20008AFOC/VY+T - Analog Devices - 3D model - Other - MAX20008AFOC/VY+T-1
click to zoom

MAX20008AFOC/VY+T Details

  • Manufacturer Part Number:

    MAX20008AFOC/VY+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Package Description:

    FC2QFN-17

  • Pin Count:

    17

  • Manufacturer Package Code:

    17-LFCSP_SS-3.5X3.5X0.70

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 4.5V TO 10V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    R-PQCC-N17

  • JESD-609 Code:

    e3

  • Length:

    3.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    17

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    17.5 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC17,.14X.15,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max (Isup):

    8000 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

MAX20008AFOC/VY+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20008AFOC/VY+T involves keeping the high-frequency switching nodes (e.g., LX, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • When selecting an inductor for the MAX20008AFOC/VY+T, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, a DC resistance of less than 100 mΩ, and a core material with low core loss (e.g., ferrite or powdered iron).
  • The MAX20008AFOC/VY+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It is recommended to derate the device's performance and ensure proper thermal management to maintain reliability.
  • To troubleshoot the MAX20008AFOC/VY+T, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and soldering. Use an oscilloscope to monitor the switching waveforms and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • Yes, the MAX20008AFOC/VY+T is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive systems. However, it is essential to follow proper design and manufacturing practices, including component selection, PCB layout, and testing, to ensure the device meets the required reliability and performance standards.
