MAX20019ATBC/V+ - Analog Devices

Description: 3.2MHz, 500mA Dual Step-Down Converters for Automotive Cameras

Download MAX20019ATBC/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

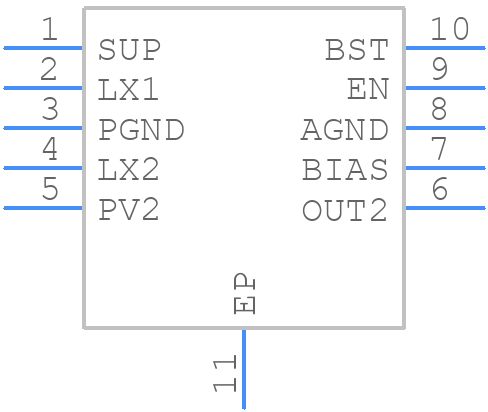

MAX20019ATBC/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20019ATBC/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032+2C
click to zoom
3D Models
MAX20019ATBC/V+ - Analog Devices - 3D model - Small Outline No-lead - T1032+2C
click to zoom

MAX20019ATBC/V+ Details

  • Manufacturer Part Number:

    MAX20019ATBC/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT HAS 1.2V BUCK2 OUTPUT VOLTAGE

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    8 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    3.399 V

  • Output Voltage-Min:

    3.201 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3400 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX20019ATBC/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20019ATBC/V+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it is recommended to use a low-ESR capacitor for the input and output capacitors, and to place them as close as possible to the device.
  • To optimize the performance of the MAX20019ATBC/V+, it is recommended to follow the layout guidelines, use a low-impedance power supply, and to minimize the noise on the input and output lines. Additionally, it is recommended to use a ferrite bead or a pi-filter to filter out high-frequency noise on the input lines.
  • The maximum operating temperature range for the MAX20019ATBC/V+ is -40°C to +125°C. However, it is recommended to operate the device within the recommended operating temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the MAX20019ATBC/V+ is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing and qualification to ensure its reliability and performance. Additionally, it is recommended to follow the recommended operating conditions and to implement proper fault detection and correction mechanisms in the system design.
  • To troubleshoot issues with the MAX20019ATBC/V+, it is recommended to follow a systematic approach, starting with a visual inspection of the board and the device. Check for any signs of physical damage, overheating, or electrical overstress. Then, use a oscilloscope or a logic analyzer to check the input and output signals, and to verify that the device is operating within the recommended specifications. If the issue persists, it is recommended to consult the datasheet and the application notes, and to contact Analog Devices' technical support for further assistance.
