MAX20019ATBG/V+T - Analog Devices

Description: 3.2MHz, 500mA Dual Step-Down Converters for Automotive Cameras

Download MAX20019ATBG/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

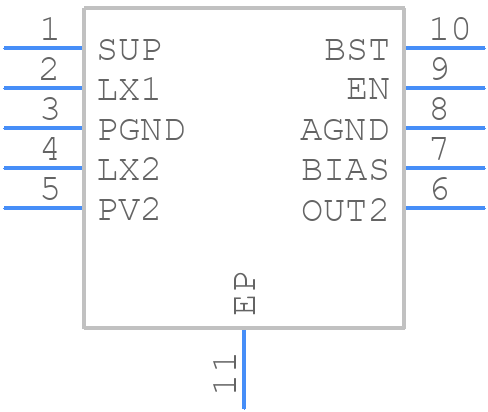

MAX20019ATBG/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20019ATBG/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1032+2C
click to zoom
3D Models
MAX20019ATBG/V+T - Analog Devices - 3D model - Small Outline No-lead - T1032+2C
click to zoom

MAX20019ATBG/V+T Details

  • Manufacturer Part Number:

    MAX20019ATBG/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X2X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X2X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-07-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    IT HAS 1.2V BUCK2 OUTPUT VOLTAGE

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    8 V

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    3.399 V

  • Output Voltage-Min:

    3.201 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    3.5 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3400 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

MAX20019ATBG/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20019ATBG/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input capacitor selection for the MAX20019ATBG/V+T depends on the input voltage, output voltage, and the desired ripple voltage. A general rule of thumb is to choose a capacitor with a value between 1uF to 10uF, with a voltage rating that is at least 1.5 times the input voltage. It's also important to consider the capacitor's ESR and ESL to ensure that it can handle the high-frequency switching of the converter.
  • The MAX20019ATBG/V+T can operate in an ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at high temperatures, so it's recommended to keep the ambient temperature below 85°C for optimal performance.
  • Proper thermal management of the MAX20019ATBG/V+T involves ensuring that the device is mounted on a PCB with a good thermal conductivity, and that the device is not exposed to high temperatures or thermal gradients. It's also recommended to use a thermal pad or heat sink to dissipate heat away from the device, especially in high-power applications.
  • The recommended input voltage range for the MAX20019ATBG/V+T is 4.5V to 60V. Operating the device outside of this range may affect its performance and reliability.
