MAX20028ATJA/VY+ - Analog Devices

Description: Step-Down Controller with Dual 2.1MHz Step-Down DC-DC Converters

Download MAX20028ATJA/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

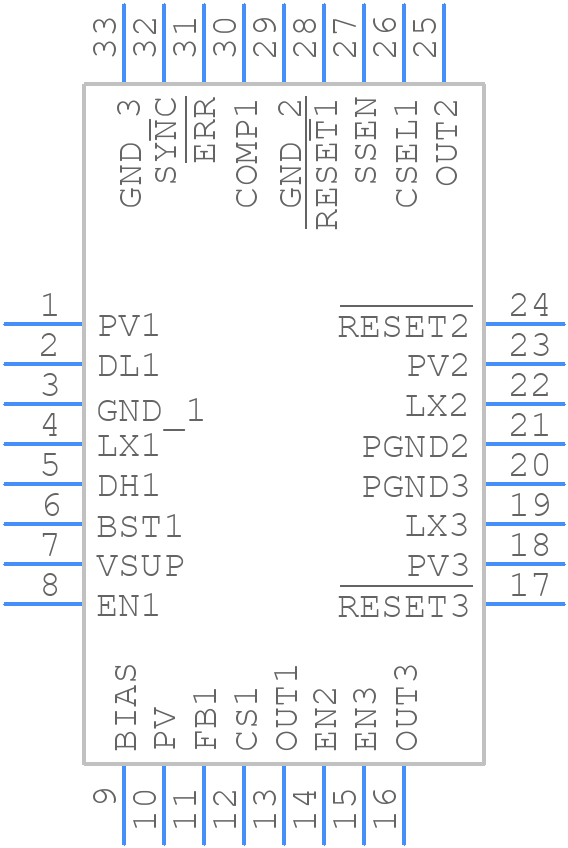

MAX20028ATJA/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20028ATJA/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.15
click to zoom
3D Models
MAX20028ATJA/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP_2026-1.15
click to zoom

MAX20028ATJA/VY+ Details

  • Manufacturer Part Number:

    MAX20028ATJA/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP_SS-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP_SS-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-09-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3.5 V

  • Supply Voltage-Nom (Vsup):

    14 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX20028ATJA/VY+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20028ATJA/VY+ can be found in the device's evaluation kit documentation or by contacting Analog Devices' technical support. A good layout should minimize noise and ensure proper thermal dissipation.
  • To optimize the performance of the MAX20028ATJA/VY+, consider factors such as input/output impedance matching, noise filtering, and thermal management. Consult the device's datasheet and application notes for guidance, and consider consulting with Analog Devices' technical support or a qualified engineer.
  • The MAX20028ATJA/VY+ has a maximum junction temperature of 150°C. Ensure proper thermal dissipation by using a heat sink, thermal vias, and a thermally conductive PCB material. Consult the device's datasheet and thermal management application notes for more information.
  • Yes, the MAX20028ATJA/VY+ is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a robust process. However, consult the device's datasheet and Analog Devices' technical support for specific requirements and qualifications.
  • To troubleshoot issues with the MAX20028ATJA/VY+, start by consulting the device's datasheet and application notes. Check for proper power supply, input/output connections, and signal integrity. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. If necessary, contact Analog Devices' technical support for further assistance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20028ATJA/VY+ Overview

Use the download button to access the MAX20028ATJA/VY+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Switching Regulator or Controllers
