MAX20037ATIB/V+ - Analog Devices

Description: Automotive High-Current Step-Down Converter with USB Protection/Host Charger Adapter Emulation, TQFN28

Download MAX20037ATIB/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

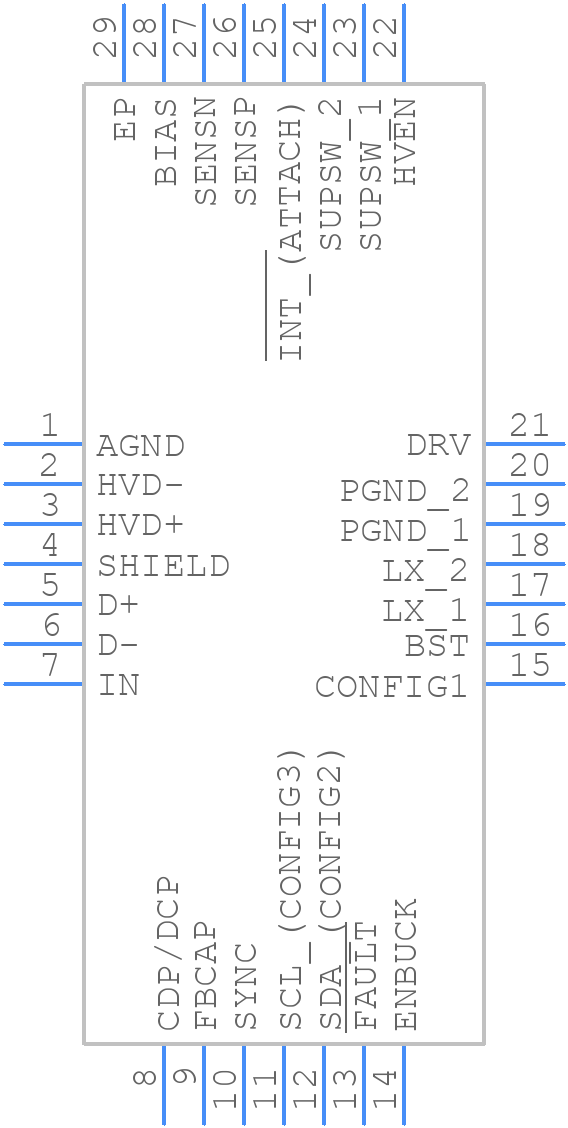

MAX20037ATIB/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20037ATIB/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855+6C
click to zoom
3D Models
MAX20037ATIB/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855+6C
click to zoom

MAX20037ATIB/V+ Details

  • Manufacturer Part Number:

    MAX20037ATIB/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-02-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Nom:

    5.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2460 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX20037ATIB/V+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX20037ATIB/V+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it is recommended to use a low-ESR capacitor for the input and output capacitors, and to place them as close as possible to the device.
  • To optimize the performance of the MAX20037ATIB/V+, it is recommended to follow the layout guidelines, use a low-impedance power supply, and to minimize the noise on the input and output lines. Additionally, it is recommended to use a ferrite bead or a pi-filter to filter out high-frequency noise on the input lines.
  • The maximum operating temperature range for the MAX20037ATIB/V+ is -40°C to +125°C. However, it is recommended to operate the device within the recommended operating temperature range of -20°C to +85°C for optimal performance and reliability.
  • Yes, the MAX20037ATIB/V+ is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing and qualification to ensure its reliability and performance. Additionally, it is recommended to follow the recommended operating conditions and to use a robust design to ensure the reliability of the system.
  • To troubleshoot issues with the MAX20037ATIB/V+, it is recommended to follow a systematic approach. First, verify that the device is properly powered and that the input and output lines are properly connected. Then, use a oscilloscope or a logic analyzer to verify the input and output signals. Finally, check the device's operating conditions and ensure that they are within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20037ATIB/V+ Overview

Use the download button to access the MAX20037ATIB/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Switching Regulator or Controllers
