MAX20050CATC/V+ - Analog Devices

Description: 2A Synchronous -Buck LED Drivers with Integrated MOSFETs

Download MAX20050CATC/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

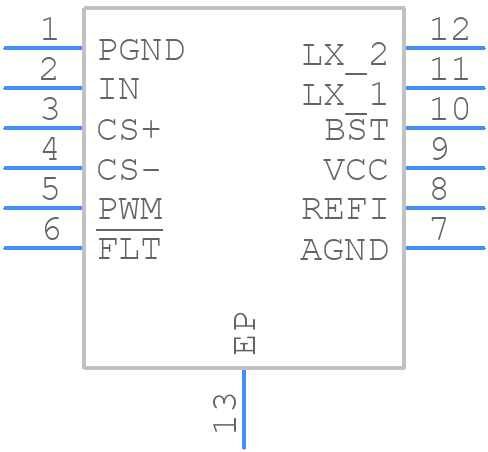

MAX20050CATC/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20050CATC/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-LFCSP-3X3X0.75_2023
click to zoom
3D Models
MAX20050CATC/V+ - Analog Devices - 3D model - Small Outline No-lead - 12-LFCSP-3X3X0.75_2023
click to zoom

MAX20050CATC/V+ Details

  • Manufacturer Part Number:

    MAX20050CATC/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.002 MHz

MAX20050CATC/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20050CATC/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20050CATC/V+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and transient response. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF or higher for the output capacitor.
  • The MAX20050CATC/V+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • The MAX20050CATC/V+ has a specific power-up and power-down sequence that must be followed to ensure proper operation. The device should be powered up by applying the input voltage (VIN) before the enable signal (EN). During power-down, the enable signal should be turned off before removing the input voltage. Additionally, the device should be powered up and powered down slowly to prevent voltage spikes and ensure proper operation.
  • The MAX20050CATC/V+ has a maximum output current capability of 500mA. However, the actual output current capability may be limited by the input voltage, output voltage, and ambient temperature. It's essential to ensure that the device is operated within the recommended operating conditions to ensure optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX20050CATC/V+ Overview

Use the download button to access the MAX20050CATC/V+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Display Drivers
