MAX20052ATC/V+T - Analog Devices

Description: 2A Synchronous -Buck LED Drivers with Integrated MOSFETs

Download MAX20052ATC/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

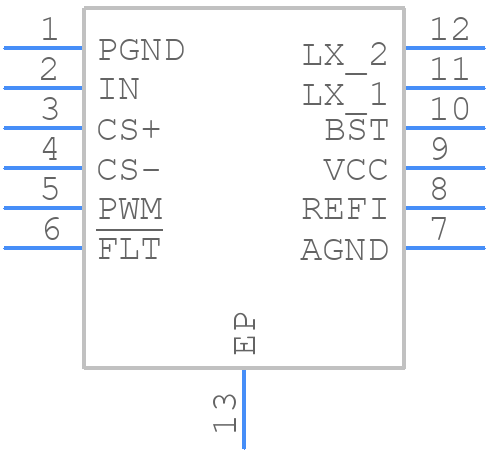

MAX20052ATC/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20052ATC/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+1C
click to zoom
3D Models
MAX20052ATC/V+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+1C
click to zoom

MAX20052ATC/V+T Details

  • Manufacturer Part Number:

    MAX20052ATC/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    0.002 MHz

MAX20052ATC/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20052ATC/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20052ATC/V+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20052ATC/V+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's essential to ensure that the device operates within the recommended temperature range for optimal performance and reliability.
  • To ensure the MAX20052ATC/V+T is stable and doesn't oscillate, it's essential to follow the recommended layout guidelines, use the correct input and output capacitors, and ensure that the device is properly decoupled. Additionally, the input and output impedance should be matched to the device's impedance, and the output should be loaded with a minimum of 1kΩ to prevent oscillation.
  • The recommended input voltage range for the MAX20052ATC/V+T is 2.7V to 5.5V. Operating the device outside this range may affect its performance, and the output voltage may not be regulated. It's essential to ensure that the input voltage is within the recommended range for optimal performance and reliability.
