MAX20067BGTJ/V+ - Analog Devices

Description: Automotive 3-Channel Display Bias IC with VCOM Buffer, Level Shifter, and I2C Interface

Download MAX20067BGTJ/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

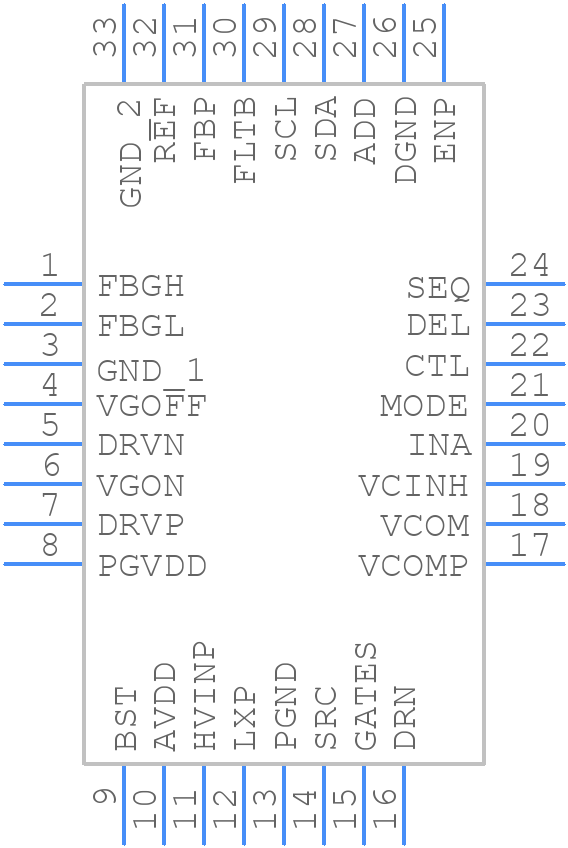

MAX20067BGTJ/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20067BGTJ/V+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+4C
click to zoom
3D Models
MAX20067BGTJ/V+ - Analog Devices - 3D model - Quad Flat No-Lead - T3255+4C
click to zoom

MAX20067BGTJ/V+ Details

  • Manufacturer Part Number:

    MAX20067BGTJ/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-12-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    ALSO IT HAS UPTO 32VOUT POSITIVE CHARGE PUMP OUTPUT AND (-24 TO -4)VOUT NEGATIVE CHARGE PUMP OUTPUT

  • Analog IC - Other Type:

    TFT LCD POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Line Regulation-Max:

    0.4%

  • Load Regulation-Max:

    1%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.25 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    3.7 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Protections:

    THERMAL; OVER LOAD

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    23.84 W

  • Trim/Adjustable Output:

    YES

  • Width:

    5 mm

MAX20067BGTJ/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20067BGTJ/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize power trace inductance.
  • The input and output capacitors for the MAX20067BGTJ/V+ should be selected based on the specific application requirements. A general guideline is to use X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be chosen to ensure that the impedance of the capacitor is less than the output impedance of the device at the switching frequency.
  • The MAX20067BGTJ/V+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • The MAX20067BGTJ/V+ should be powered up and powered down slowly to prevent damage to the device. A soft-start circuit can be used to limit the inrush current during power-up. During power-down, the input voltage should be reduced slowly to prevent the device from entering an undefined state.
  • The MAX20067BGTJ/V+ has built-in ESD protection, but additional external protection may be necessary depending on the application. A good practice is to use a TVS diode or a transient voltage suppressor at the input and output pins to protect against electrostatic discharge.
