MAX20067GTJ/V+T - Analog Devices

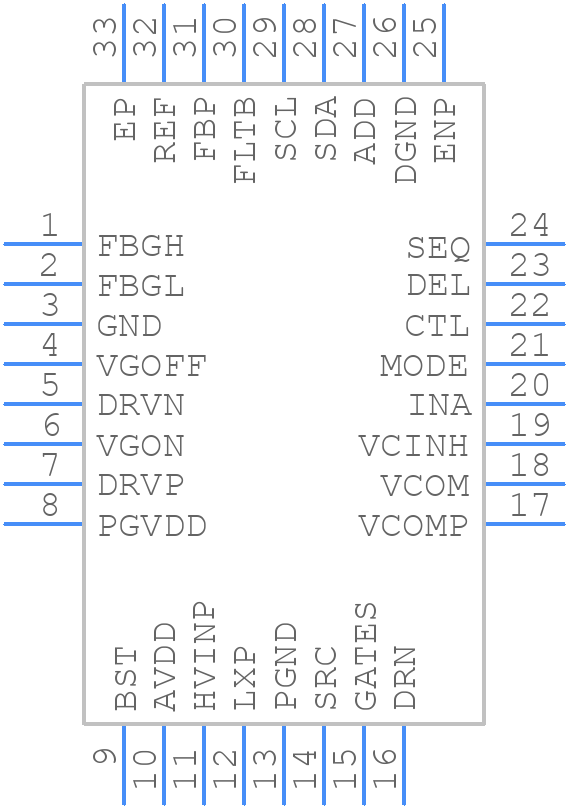

MAX20067GTJ/V+T Details

• Manufacturer Part Number:

  MAX20067GTJ/V+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  32-LFCSP-5X5X0.75

• Package Description:

  TQFN-32

• Pin Count:

  32

• Manufacturer Package Code:

  32-LFCSP-5X5X0.75

• ECCN Code:

  EAR99

• Date Of Intro:

  2017-12-21

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  ALSO IT HAS UPTO 32VOUT POSITIVE CHARGE PUMP OUTPUT AND (-24 TO -4)VOUT NEGATIVE CHARGE PUMP OUTPUT

• Analog IC - Other Type:

  TFT LCD POWER SUPPLY MODULE

• Input Voltage-Max:

  5.5 V

• Input Voltage-Min:

  2.7 V

• Input Voltage-Nom:

  3.6 V

• JESD-30 Code:

  S-XQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Line Regulation-Max:

  0.4%

• Load Regulation-Max:

  1%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  3

• Number of Terminals:

  32

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.9 A

• Output Voltage-Max:

  18 V

• Output Voltage-Min:

  3.7 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Protections:

  THERMAL; OVER LOAD

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Total Power Output-Max:

  53.54 W

• Trim/Adjustable Output:

  YES

• Width:

  5 mm
