MAX20073ATBA/V+ - Analog Devices

Description: Single 2A/3A 2.2MHz Low-Voltage Step-Down DC-DC Converters

Download MAX20073ATBA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

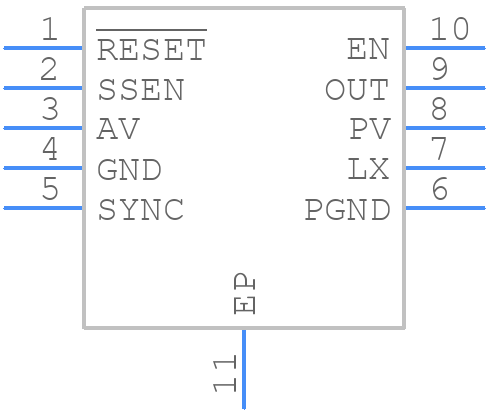

Symbol
MAX20073ATBA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20073ATBA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX20073ATBA/V+ - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX20073ATBA/V+ Details

  • Manufacturer Part Number:

    MAX20073ATBA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    USE PULSE SKIP MODULATION IN LIGHT LOADS

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.8 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.093 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20073ATBA/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20073ATBA/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20073ATBA/V+ depends on the specific application requirements. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20073ATBA/V+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
  • To ensure proper power-up and power-down of the MAX20073ATBA/V+, it's essential to follow a controlled power-up sequence. The device should be powered up in the following order: VCC, VIN, and then EN. During power-down, the sequence should be reversed: EN, VIN, and then VCC. Additionally, the power-up and power-down rates should be controlled to prevent voltage overshoots and undershoots.
  • The MAX20073ATBA/V+ is a high-performance, low-dropout linear regulator (LDO) suitable for a wide range of applications, including industrial, automotive, medical, and consumer electronics. It's commonly used in power supplies, battery-powered devices, and systems requiring low noise and high power supply rejection ratio (PSRR).
