MAX20074ATBA/V+ - Analog Devices

Description: Switching Voltage Regulators 3A 2.2MHz Low Voltage Step-Down DC-DC Converter

Download MAX20074ATBA/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

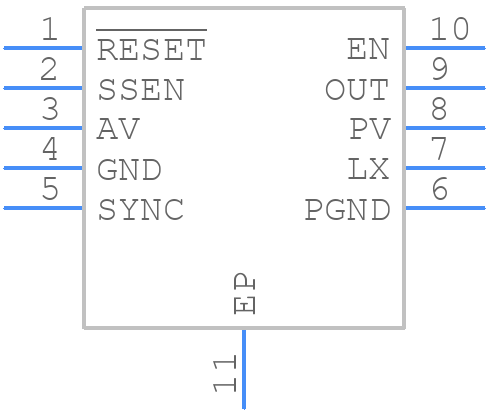

MAX20074ATBA/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20074ATBA/V+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX20074ATBA/V+ - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX20074ATBA/V+ Details

  • Manufacturer Part Number:

    MAX20074ATBA/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    USE PULSE SKIP MODULATION IN LIGHT LOADS

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-XDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.8 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.093 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20074ATBA/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20074ATBA/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20074ATBA/V+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output stages. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20074ATBA/V+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may drop. It's essential to ensure that the device is operated within the recommended temperature range to maintain optimal performance and reliability.
  • To troubleshoot common issues with the MAX20074ATBA/V+, start by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, and the output load is within the specified current limit. Check for any signs of overheating, and verify that the decoupling capacitors are properly placed and sized. Use an oscilloscope to measure the output voltage and current, and look for any signs of oscillations or ringing. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • Yes, the MAX20074ATBA/V+ is suitable for high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it meets the requirements of various automotive standards, such as AEC-Q100. However, it's essential to consult the datasheet and application notes for specific guidelines on using the device in these applications, and to ensure that the device meets the required specifications and standards.
