MAX20074ATBA/V+T - Analog Devices

Description: Single 2A/3A 2.2MHz Low-Voltage Step-Down DC-DC Converters

Download MAX20074ATBA/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

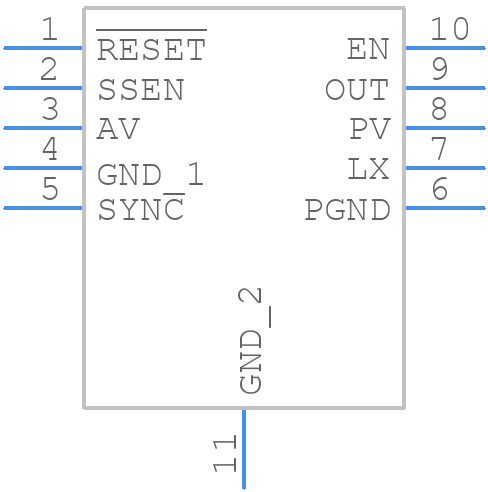

MAX20074ATBA/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20074ATBA/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - T1033+1C
click to zoom
3D Models
MAX20074ATBA/V+T - Analog Devices - 3D model - Small Outline No-lead - T1033+1C
click to zoom

MAX20074ATBA/V+T Details

  • Manufacturer Part Number:

    MAX20074ATBA/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-LFCSP-3X3X0.75

  • Package Description:

    TDFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-10-05

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    3.8 V

  • Output Voltage-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.093 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20074ATBA/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20074ATBA/V+T involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • The input and output capacitors for the MAX20074ATBA/V+T should be selected based on the specific application requirements. A general rule of thumb is to use X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be chosen to ensure that the impedance of the capacitor is less than the output impedance of the device at the switching frequency.
  • The MAX20074ATBA/V+T has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to maintain reliability.
  • The MAX20074ATBA/V+T requires a controlled power-up and power-down sequence to ensure proper operation. The device should be powered up with a slow ramp-up of the input voltage (typically 1-10 ms) and powered down with a slow ramp-down of the input voltage. Additionally, the enable pin should be controlled to prevent unwanted switching during power-up and power-down.
  • The recommended input voltage range for the MAX20074ATBA/V+T is 4.5V to 38V. However, the device can operate with input voltages as low as 3.5V and as high as 42V, but with reduced performance and efficiency.
