MAX20075ATCB/V+ footprint, schematic symbol and 3D model by Analog Devices

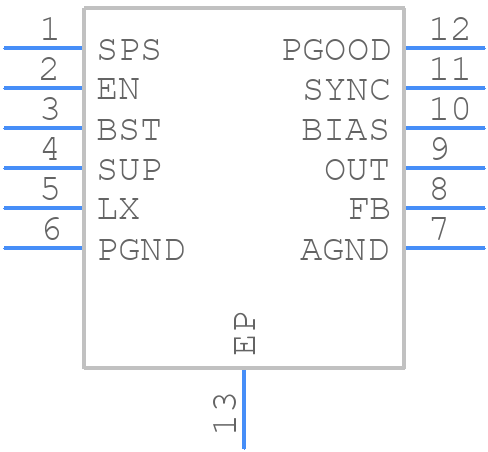

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX20075ATCB/V+
Part Number MAX20075ATCB/V+
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - 12-LFCSP-3X3X0.75-1
Released Date Oct 21, 2020
Last Modified Date Jul 18, 2024 4:58 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX20075ATCB/V+ Details

Manufacturer Part Number:
MAX20075ATCB/V+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
12-LFCSP-3X3X0.75
Package Description:
TDFN-12
Pin Count:
12
Manufacturer Package Code:
12-LFCSP-3X3X0.75
Country Of Origin:
Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2018-01-15
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
3.5 V
Input Voltage-Nom:
14 V
JESD-30 Code:
S-PDSO-N12
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Max:
10 V
Output Voltage-Min:
3 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HWSON
Package Equivalence Code:
SOLCC12,.12,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2275 kHz
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

MAX20075ATCB/V+ Frequently Asked Questions (FAQs)

A good PCB layout for the MAX20075ATCB/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device should be placed near the power source to minimize power trace length.
To ensure proper power-up and configuration, the MAX20075ATCB/V+ requires a power-on reset (POR) circuit to reset the device during power-up. The POR circuit should be designed to provide a minimum reset pulse width of 10ms. Additionally, the device's configuration pins (such as EN, MODE, and FLT) should be properly biased during power-up to ensure the device is configured correctly.
A recommended input filter configuration for the MAX20075ATCB/V+ involves using a pi-filter (C-R-C) or a T-filter (L-C-R) topology with a cutoff frequency of around 100kHz to 1MHz. The filter components should be chosen to provide a balance between noise attenuation and signal integrity. Additionally, the input filter should be placed as close to the device as possible to minimize noise pickup.
To troubleshoot issues with the MAX20075ATCB/V+, start by verifying the power supply and input voltage levels. Check the device's configuration pins to ensure they are properly biased. Use an oscilloscope to monitor the device's output and input signals to identify any anomalies. Additionally, use a logic analyzer to verify the device's digital signals and ensure they are correct. If issues persist, consult the device's datasheet and application notes for guidance.
To prevent overheating, the MAX20075ATCB/V+ requires proper thermal management. The device's thermal pad should be connected to a solid ground plane or a thermal via to dissipate heat. The PCB should be designed to provide good thermal conductivity, and the device should be placed in a location with good airflow. Additionally, the device's power dissipation should be calculated and managed to prevent excessive heat generation.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MAX20075ATCB/V+ Overview

Use the download button to access the MAX20075ATCB/V+ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
