MAX20075ATCB/V+T - Analog Devices

Description: 36V, 600mA/1.2A Mini Buck Converter

Download MAX20075ATCB/V+T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

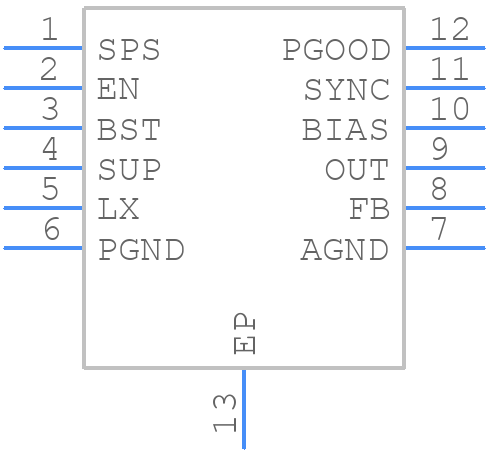

MAX20075ATCB/V+T - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20075ATCB/V+T - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233+2C
click to zoom
3D Models
MAX20075ATCB/V+T - Analog Devices - 3D model - Small Outline No-lead - TD1233+2C
click to zoom

MAX20075ATCB/V+T Details

  • Manufacturer Part Number:

    MAX20075ATCB/V+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP-3X3X0.75

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-01-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20075ATCB/V+T Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20075ATCB/V+T involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, the device's thermal pad should be connected to a solid ground plane to ensure proper heat dissipation.
  • The selection of input and output capacitors for the MAX20075ATCB/V+T depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The input capacitor should have a value of 1uF to 10uF, while the output capacitor should have a value of 1uF to 22uF. The capacitor's ESR (Equivalent Series Resistance) should be less than 100mΩ.
  • The MAX20075ATCB/V+T has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at temperatures above 85°C, and the output voltage may drop. It is recommended to operate the device within the -20°C to +85°C range for optimal performance.
  • To ensure proper power-up and power-down of the MAX20075ATCB/V+T, the input voltage should be ramped up slowly (typically 1ms to 10ms) to prevent inrush currents. The device's enable pin (EN) should be tied to a logic signal that is asserted after the input voltage has reached its nominal value. During power-down, the input voltage should be ramped down slowly, and the EN pin should be de-asserted before the input voltage reaches 0V.
  • The recommended input voltage range for the MAX20075ATCB/V+T is 4.5V to 5.5V. Operating the device outside of this range may affect its performance, efficiency, and reliability. It is recommended to use a voltage regulator or a power supply with a tight voltage tolerance to ensure the input voltage remains within the recommended range.
