MAX20077ATCB/VY+ - Analog Devices

Description: Switching Voltage Regulators 36V 2.5A Buck Converter with 6 A Iq

Download MAX20077ATCB/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

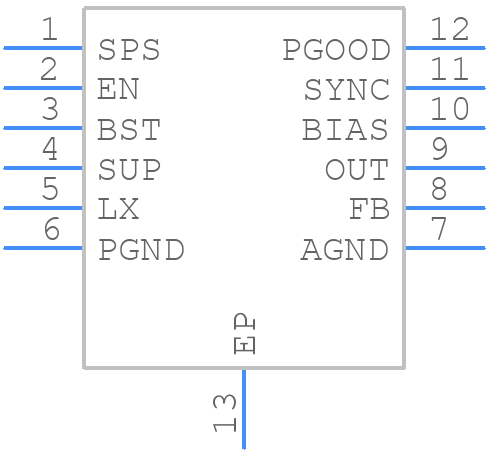

MAX20077ATCB/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20077ATCB/VY+ - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - TD1233Y+2C
click to zoom
3D Models
MAX20077ATCB/VY+ - Analog Devices - 3D model - Small Outline No-lead - TD1233Y+2C
click to zoom

MAX20077ATCB/VY+ Details

  • Manufacturer Part Number:

    MAX20077ATCB/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    12-LFCSP_SS-3X3X0.75

  • Package Description:

    TDFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    12-LFCSP_SS-3X3X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.5 V

  • Input Voltage-Nom:

    14 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    10 V

  • Output Voltage-Min:

    3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.008 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2275 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX20077ATCB/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20077ATCB/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20077ATCB/VY+ depends on the specific application requirements. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired output voltage ripple and the input voltage range. A minimum capacitance of 10uF is recommended for the input capacitor, and a minimum capacitance of 22uF is recommended for the output capacitor.
  • The MAX20077ATCB/VY+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
  • To troubleshoot issues with the MAX20077ATCB/VY+, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly connected and that the input and output capacitors are correctly sized. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any unusual voltage or current waveforms. Consult the datasheet and application notes for troubleshooting guidelines and common issues.
  • Yes, the MAX20077ATCB/VY+ is suitable for high-reliability and automotive applications. The device is AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to ensure that the device is operated within the recommended temperature range and that the PCB layout and design meet the requirements for high-reliability and automotive applications.
