MAX20078AUE/V+ - Analog Devices

Description: LED Lighting Drivers Synchronous Buck Controller for High Power LED drivers

Download MAX20078AUE/V+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

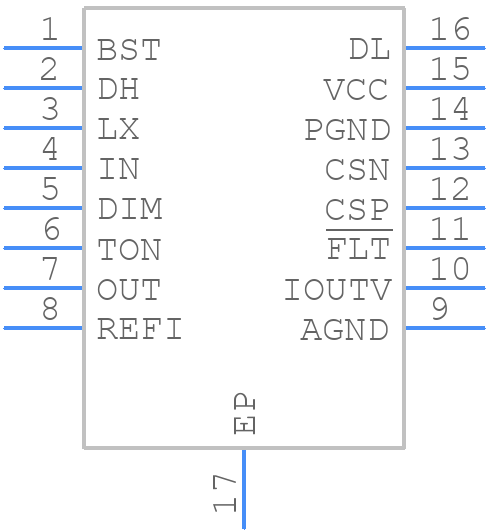

MAX20078AUE/V+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20078AUE/V+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-EP
click to zoom
3D Models
MAX20078AUE/V+ - Analog Devices - 3D model - Small Outline Packages - TSSOP-EP
click to zoom

MAX20078AUE/V+ Details

  • Manufacturer Part Number:

    MAX20078AUE/V+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-TSSOP_4.4-4.4_MM

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-TSSOP_4.4-4.4_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    14 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

MAX20078AUE/V+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20078AUE/V+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20078AUE/V+ depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The input capacitor should have a value between 1uF to 10uF, while the output capacitor should have a value between 1uF to 22uF. It's essential to consider the capacitor's ESR, ESL, and ripple current rating when making a selection.
  • The MAX20078AUE/V+ has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the specific application requirements and ensure that the device operates within the recommended temperature range.
  • To ensure proper power-up and power-down of the MAX20078AUE/V+, it's essential to follow a controlled power-up sequence. The device should be powered up in the following order: VIN, EN, and then VOUT. During power-down, the sequence should be reversed. Additionally, the device should be powered down slowly to prevent any voltage overshoots or ringing.
  • The recommended input voltage range for the MAX20078AUE/V+ is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability. It's essential to ensure that the input voltage is within the recommended range to guarantee the device's specifications.
