MAX20096ATJ/VY+ - Analog Devices

Description: Dual-Channel Synchronous Buck, High-Brightness LED Controller with and without SPI Interface

Download MAX20096ATJ/VY+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

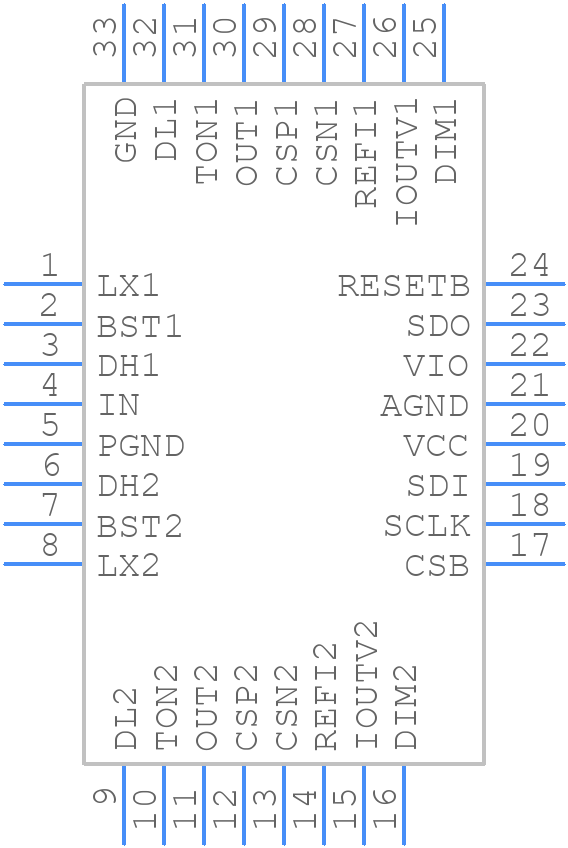

MAX20096ATJ/VY+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX20096ATJ/VY+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX20096ATJ/VY+aa
click to zoom
3D Models
MAX20096ATJ/VY+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX20096ATJ/VY+aa
click to zoom

MAX20096ATJ/VY+ Details

  • Manufacturer Part Number:

    MAX20096ATJ/VY+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP_SS-5X5X0.75

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP_SS-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-12-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    2

  • Number of Segments:

    16

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    4 MHz

MAX20096ATJ/VY+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX20096ATJ/VY+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • The selection of input and output capacitors for the MAX20096ATJ/VY+ depends on the specific application requirements. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be chosen based on the desired cutoff frequency and the impedance of the input and output signals. A good starting point is to use 1uF to 10uF capacitors for both input and output.
  • The MAX20096ATJ/VY+ has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and the output voltage may vary. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
  • To troubleshoot common issues with the MAX20096ATJ/VY+, start by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, and the output load is within the specified current limit. Check for any signs of overheating, and verify that the decoupling capacitors are properly placed and sized. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, or contact Analog Devices' technical support.
  • Yes, the MAX20096ATJ/VY+ is suitable for high-reliability and automotive applications. The device is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. Additionally, the device is built with high-reliability materials and manufacturing processes to ensure long-term reliability and performance.
