MAX2014EUA+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX2014EUA+ - RF POWER DETECTOR, 1GHZ, UMAX-8

Download MAX2014EUA+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

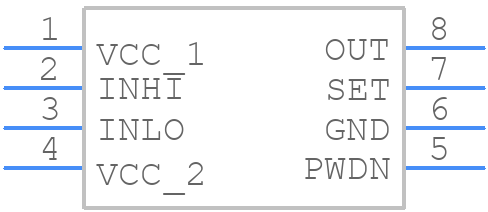

MAX2014EUA+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2014EUA+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 21-0036 8Pin uMax_2
click to zoom
3D Models
MAX2014EUA+ - Analog Devices - 3D model - Small Outline Packages - 21-0036 8Pin uMax_2
click to zoom

MAX2014EUA+ Details

  • Manufacturer Part Number:

    MAX2014EUA+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    8-MINI_SO-N/A

  • Pin Count:

    8

  • Manufacturer Package Code:

    8-MINI_SO-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2006-07-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX2014EUA+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2014EUA+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the signal traces short and direct.
  • To ensure proper powering and decoupling, use a high-quality power supply with low noise and ripple. Add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins, and use a 1uF capacitor on the VCC pin. Also, ensure that the power supply can provide the required current for the device and the load.
  • The MAX2014EUA+ has an operating temperature range of -40°C to +125°C. However, it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
  • To troubleshoot issues with the MAX2014EUA+, start by checking the power supply and decoupling. Verify that the device is properly powered and that the input signals are within the specified range. Use an oscilloscope to check the output signals and look for any signs of noise or distortion. If the issue persists, consult the datasheet and application notes for guidance.
  • The MAX2014EUA+ is a high-reliability device, but it's essential to follow proper design and testing procedures to ensure the device meets the requirements of the specific application. Consult the datasheet and application notes, and consider performing additional testing and validation to ensure the device meets the required safety and reliability standards.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2014EUA+ Overview

Use the download button to access the MAX2014EUA+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Analog Computational Functions
