MAX2016ETI+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX2016ETI+ - RF Detector IC, 100 MHz to 2.5 GHz, -70 dBm to 10 dBm Input Power, 2.7 V to 3.6 V supply, TQFN-28

Download MAX2016ETI+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

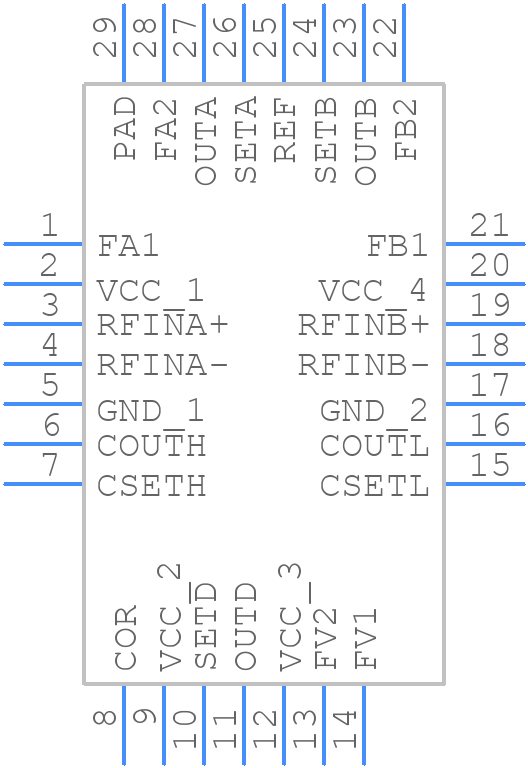

MAX2016ETI+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2016ETI+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2855-3
click to zoom
3D Models
MAX2016ETI+ - Analog Devices - 3D model - Quad Flat No-Lead - T2855-3
click to zoom

MAX2016ETI+ Details

  • Manufacturer Part Number:

    MAX2016ETI+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    28-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, 0.80 MM HEIGHT, MO-220-WHHD, TQFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    28-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2004-10-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    LOG OR ANTILOG AMPLIFIER

  • Bandwidth-Nom:

    22 MHz

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Positive Input Voltage-Max:

    5 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    55 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX2016ETI+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2016ETI+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the signal traces short and direct.
  • The MAX2016ETI+ requires a single 3.3V power supply, and it's recommended to use a low-noise, low-dropout regulator (LDO) to power the device. The power sequencing requirements are not critical, but it's recommended to power up the device after the power supply has stabilized.
  • The MAX2016ETI+ has an operating temperature range of -40°C to +125°C. Temperature affects the device's performance, with increased temperature resulting in decreased accuracy and increased noise. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
  • The MAX2016ETI+ does not require calibration, as it is a factory-calibrated device. However, it's recommended to perform a system-level calibration to ensure optimal performance in the specific application.
  • The MAX2016ETI+ has built-in ESD protection and latch-up prevention measures, including diodes and resistors to protect the device from electrostatic discharge and latch-up. However, it's still recommended to follow proper handling and assembly procedures to prevent damage.
