MAX2031ETP+ - Analog Devices

Description: RF Mixer High-Linearity, 650MHz to 1000MHz Upconv

Download MAX2031ETP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

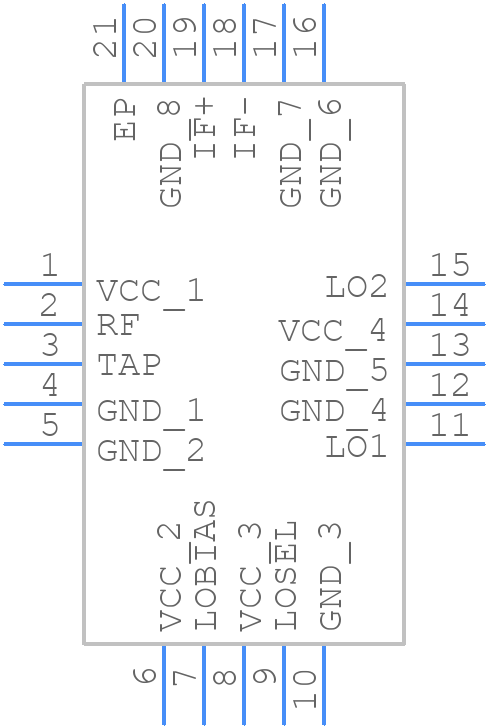

MAX2031ETP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2031ETP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T2055+3
click to zoom
3D Models
MAX2031ETP+ - Analog Devices - 3D model - Quad Flat No-Lead - T2055+3
click to zoom

MAX2031ETP+ Details

  • Manufacturer Part Number:

    MAX2031ETP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, MO-220WHHC, TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2005-07-21

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX2031ETP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2031ETP+ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure proper power-up and power-down sequencing, it's recommended to power up the VCC pin first, followed by the VIN pin. When powering down, reverse the sequence. Additionally, make sure to add a soft-start circuit to limit the inrush current during power-up.
  • The maximum allowed input voltage ripple for the MAX2031ETP+ is 100mV peak-to-peak. Exceeding this limit may affect the device's performance and stability.
  • The MAX2031ETP+ is rated for operation up to 125°C. However, it's recommended to derate the device's performance and consider thermal management techniques, such as heat sinking and airflow, to ensure reliable operation in high-temperature environments.
  • To troubleshoot issues with the MAX2031ETP+ output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly powered up and down, and that there are no signs of overheating or physical damage.
