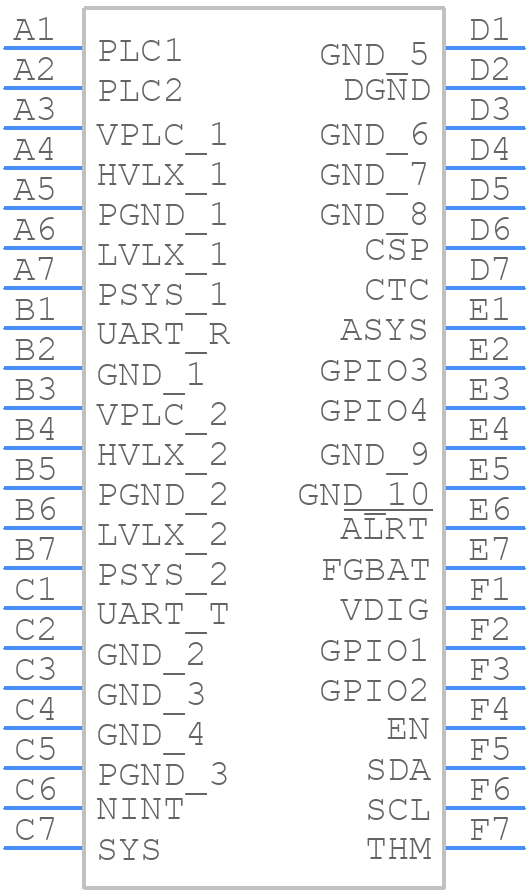

MAX20355EWO+T - Analog Devices

MAX20355EWO+T Details

• Manufacturer Part Number:

  MAX20355EWO+T

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  42-WLCSP-N/A

• Package Description:

  WLP-42

• Pin Count:

  42

• Manufacturer Package Code:

  42-WLCSP-N/A

• HTS Code:

  8542.39.00.01

• Date Of Intro:

  2022-06-01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Interface IC Type:

  INTERFACE CIRCUIT

• JESD-30 Code:

  R-XBGA-B42

• Length:

  3.048 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  42

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA42,6X7,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.69 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.8 V

• Supply Voltage-Nom:

  2.9 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2.798 mm
