MAX20828TAFH+ footprint, schematic symbol and 3D model by Analog Devices

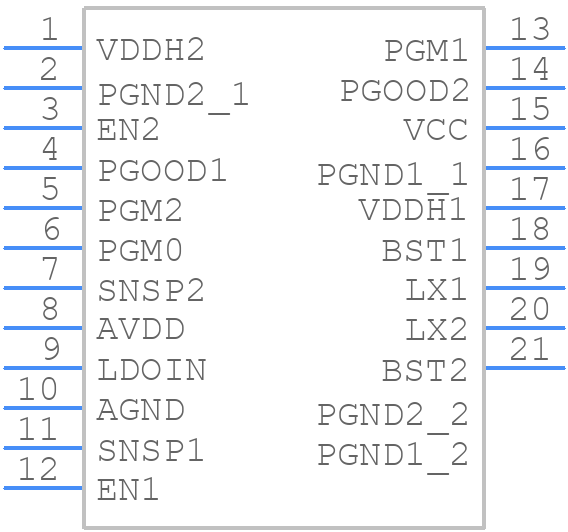

Symbol

click to zoom

PCB Footprints

MAX20828TAFH+ - Analog Devices PCB footprint - Other - Other - F213A4F+2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAX20828TAFH+
Part Number MAX20828TAFH+
Manufacturer Analog Devices
Pin Count 23
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - F213A4F+2
Released Date Sep 2, 2024
Last Modified Date Sep 2, 2024 9:33 AM UTC
Pinout / Pin List Click Here (Member Only)

MAX20828TAFH+ Details

Manufacturer Part Number:
MAX20828TAFH+
Brand Name:
Analog Devices Inc
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
21-LFCSP-3.5X4.6X0.7
Package Description:
FC2QFN-21
Pin Count:
21
Manufacturer Package Code:
21-LFCSP-3.5X4.6X0.7
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Date Of Intro:
2023-04-06
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
16 V
Input Voltage-Min:
2.7 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XQCC-N21
JESD-609 Code:
e3
Length:
4.6 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
21
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
16 A
Output Voltage-Max:
5.8 V
Output Voltage-Min:
0.5 V
Output Voltage-Nom:
1.8 V
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC21,.13x.18,20
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.75 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
3000 kHz
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.5 mm

MAX20828TAFH+ Frequently Asked Questions (FAQs)

The recommended PCB layout for the MAX20828TAFH+ can be found in the device's evaluation kit documentation or by contacting Analog Devices' technical support. A good layout should ensure proper grounding, decoupling, and signal routing to minimize noise and ensure optimal performance.
The MAX20828TAFH+ is a highly configurable device. To configure it for a specific application, refer to the device's datasheet and application notes. You can also use Analog Devices' online configuration tools or consult with their technical support team for guidance.
The MAX20828TAFH+ has an operating temperature range of -40°C to +125°C. However, the device's performance may vary across this range. Refer to the datasheet for specific temperature-related performance characteristics.
Yes, the MAX20828TAFH+ is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive reliability. However, you should consult with Analog Devices' technical support team to ensure that the device meets your specific application requirements.
To troubleshoot issues with the MAX20828TAFH+, refer to the device's datasheet and application notes. You can also use Analog Devices' online resources, such as their knowledge base and community forums, or consult with their technical support team for guidance.
