MAX2082CXD+ - Analog Devices

Description: Analog Front End - AFE Octal integrated Ultrasound Transceiver

Download MAX2082CXD+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAX2082CXD+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

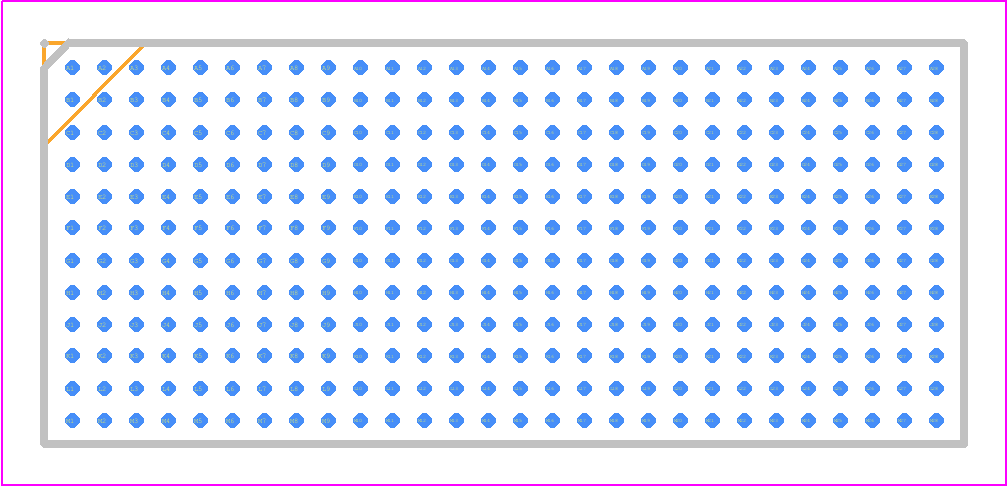

MAX2082CXD+ - Analog Devices PCB footprint - BGA - BGA - X336023M+3
click to zoom
3D Models
MAX2082CXD+ - Analog Devices - 3D model - BGA - X336023M+3
click to zoom

MAX2082CXD+ Details

  • Manufacturer Part Number:

    MAX2082CXD+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    336-CSP_BGA-23X10X1.4

  • Package Description:

    CSBGA-336

  • Pin Count:

    336

  • Manufacturer Package Code:

    336-CSP_BGA-23X10X1.4

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2014-09-24

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Additional Feature:

    IT ALSO FABRICATED BY USING BCDMOS, CMOS, REQUIRES 5 V DRIVER SUPPLY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B336

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    336

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    10 mm

MAX2082CXD+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX2082CXD+ involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper power-up and power-down of the MAX2082CXD+, make sure to follow the recommended power-up sequence, which is to power up the VCC pin first, followed by the VIN pin. During power-down, reverse the sequence. Also, ensure that the input voltage ramps up and down slowly to prevent damage to the device.
  • The MAX2082CXD+ can operate over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of -20°C to +85°C for optimal performance.
  • To troubleshoot issues with the MAX2082CXD+, start by checking the input and output voltages, and ensure that the device is properly powered up and down. Check for any signs of overheating, and verify that the PCB layout is correct. Use an oscilloscope to check for any unusual waveforms or noise on the input and output pins.
  • Yes, the MAX2082CXD+ is suitable for high-reliability applications. It's built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX2082CXD+ Overview

Use the download button to access the MAX2082CXD+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX20, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
