MAX2090ETP+ - Analog Devices

Description: MAXIM INTEGRATED PRODUCTS - MAX2090ETP+ - RF VGA, 26.1DB, 1MHZ, 5.8V, TQFN-20

Download MAX2090ETP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

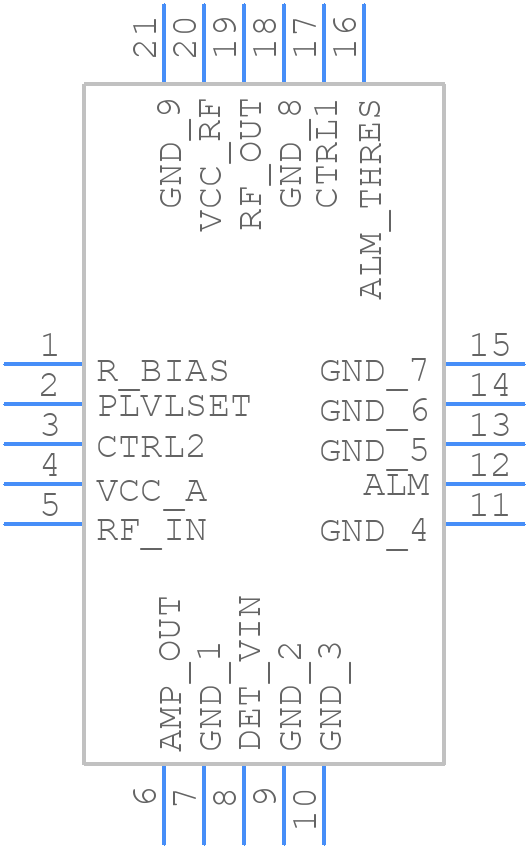

MAX2090ETP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX2090ETP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MAX2090ETP+
click to zoom
3D Models
MAX2090ETP+ - Analog Devices - 3D model - Quad Flat No-Lead - MAX2090ETP+
click to zoom

MAX2090ETP+ Details

  • Manufacturer Part Number:

    MAX2090ETP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-5X5X0.75

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-5X5X0.75

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • Date Of Intro:

    2011-10-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    23.5 dB

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Power Supplies:

    5.5 V

  • RF/Microwave Device Type:

    VARIABLE GAIN AMPLIFIER

  • Supply Current-Max:

    110 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.22
