MAX22163FAEE+ - Analog Devices

Description: Reinforced, Fast, Low-Power, Six-Channel Digital Isolators

Download MAX22163FAEE+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

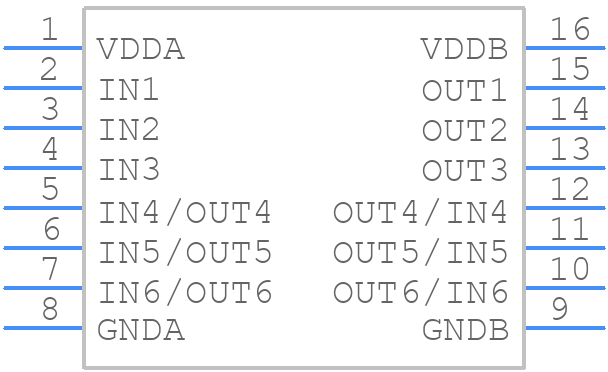

MAX22163FAEE+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22163FAEE+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-QSOP-150_MIL_2023
click to zoom
3D Models
MAX22163FAEE+ - Analog Devices - 3D model - Small Outline Packages - 16-QSOP-150_MIL_2023
click to zoom

MAX22163FAEE+ Details

  • Manufacturer Part Number:

    MAX22163FAEE+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    16-QSOP-150_MIL

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    16-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2021-12-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX22163FAEE+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22163FAEE+ can be found in the MAX22163 evaluation kit documentation, which includes a detailed layout guide and Gerber files. Additionally, Analog Devices provides a PCB layout checklist in the device's datasheet.
  • To optimize the performance of the MAX22163FAEE+, follow the recommended PCB layout, use a low-impedance power supply decoupling, and minimize the length of the signal traces. Additionally, ensure that the input and output signals are properly terminated and matched to the device's impedance.
  • The MAX22163FAEE+ is specified to operate from -40°C to +125°C, but it can be operated up to +150°C with derating. However, it's recommended to consult with Analog Devices' application engineers for specific guidance on operating the device at extreme temperatures.
  • Yes, the MAX22163FAEE+ is suitable for high-reliability and aerospace applications. It's manufactured using a robust process, and Analog Devices provides a range of reliability and quality data, including FIT rates and radiation testing results. However, it's recommended to consult with Analog Devices' engineers to ensure that the device meets the specific application needs.
  • To troubleshoot issues with the MAX22163FAEE+, start by reviewing the device's datasheet and application notes. Check the PCB layout, power supply and signal integrity, and ensure that the device is properly configured. If issues persist, consult with Analog Devices' application engineers or use their online support resources.
