MAX22193ATP+ - Analog Devices

Description: High-Speed, Quad, Industrial Digital Input with Parallel Output

Download MAX22193ATP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

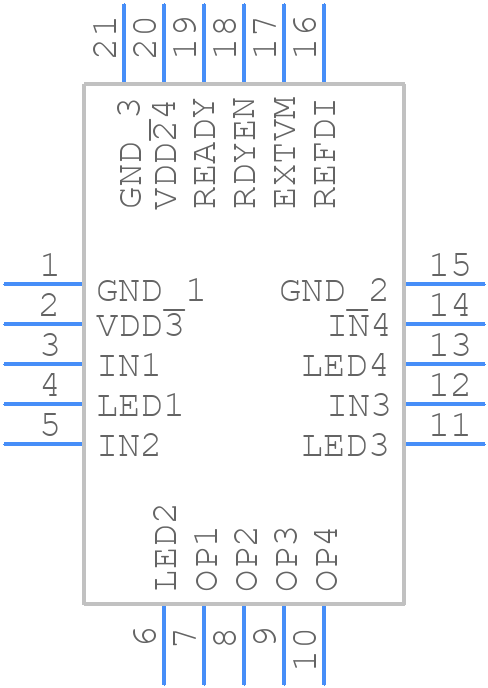

MAX22193ATP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22193ATP+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-LFCSP-4X4X0.75_2023-1
click to zoom
3D Models
MAX22193ATP+ - Analog Devices - 3D model - Quad Flat No-Lead - 20-LFCSP-4X4X0.75_2023-1
click to zoom

MAX22193ATP+ Details

  • Manufacturer Part Number:

    MAX22193ATP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-LFCSP-4X4X0.75

  • Package Description:

    TQFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-LFCSP-4X4X0.75

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2022-06-01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    DIGITAL I/O MODULE

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

MAX22193ATP+ Frequently Asked Questions (FAQs)

  • A good PCB layout for the MAX22193ATP+ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the isolation barrier. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation of the MAX22193ATP+ in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device should be operated within its specified temperature range (-40°C to +125°C).
  • The MAX22193ATP+ is rated for 3000Vrms isolation, but if the system requires a different isolation voltage rating, the device may not provide the necessary isolation. In such cases, it's essential to evaluate the system's isolation requirements and ensure that the device meets those requirements. If not, an alternative device with the required isolation rating should be selected.
  • To troubleshoot issues with the MAX22193ATP+, start by verifying that the device is properly powered and configured. Check the input and output signals, and ensure that the device is operating within its specified parameters. Use oscilloscopes and logic analyzers to debug the issue, and consult the datasheet and application notes for guidance. If the issue persists, contact Analog Devices' technical support for further assistance.
  • Yes, the MAX22193ATP+ is UL recognized (UL 1577) and can be used in designs that require UL certification. However, it's essential to ensure that the device is used in accordance with the UL recognition and that the overall system design meets the UL certification requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22193ATP+ Overview

Use the download button to access the MAX22193ATP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX22, or try a keyword search, such as Other Interface ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
