MAX22196ATJ+ - Analog Devices

Description: Octal Industrial Sink/Source Digital Input

Download MAX22196ATJ+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

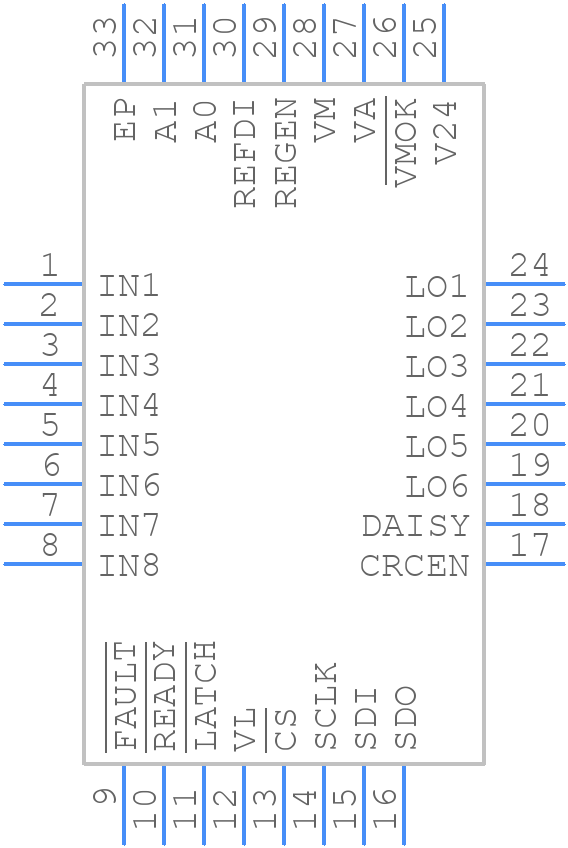

MAX22196ATJ+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX22196ATJ+ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - T3255+8C
click to zoom
3D Models
MAX22196ATJ+ - Analog Devices - 3D model - Quad Flat No-Lead - T3255+8C
click to zoom

MAX22196ATJ+ Details

  • Manufacturer Part Number:

    MAX22196ATJ+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    32-LFCSP-5X5X0.75

  • Package Description:

    TQFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    32-LFCSP-5X5X0.75

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2023-03-22

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    Digital I/P Module

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

MAX22196ATJ+ Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MAX22196ATJ+ is to use a 4-layer board with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to place it as close as possible to the pin.
  • To ensure the MAX22196ATJ+ is properly powered up and configured, make sure to follow the power-up sequence specified in the datasheet, and to configure the device using the correct register settings. It's also recommended to use a reset circuit to ensure the device is properly reset during power-up.
  • The maximum cable length supported by the MAX22196ATJ+ depends on the specific application and the type of cable used. However, as a general rule, the device can support cable lengths of up to 100 meters at a data rate of 100 Mbps. It's recommended to consult the datasheet and application notes for more information on cable length and signal integrity.
  • To troubleshoot issues with the MAX22196ATJ+, start by checking the power supply and clock signals to ensure they are within the specified ranges. Then, use a logic analyzer or oscilloscope to verify the digital signals and check for any errors or anomalies. It's also recommended to consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the MAX22196ATJ+ is specified to operate over an industrial temperature range of -40°C to +85°C. However, it's recommended to consult the datasheet and reliability reports for more information on the device's operating temperature range and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX22196ATJ+ Overview

Use the download button to access the MAX22196ATJ+ schematic symbol, PCB footprint, and 3D model.
